CLEAR YOUR
PROPERTY
LIKE A PRO

DEFENDER™

Compact snowplow

SAY GOODBYE TO
YOUR SNOWBLOWER

Defend your driveway from the deepest drifts with the WESTERN® DEFENDER™ compact snow plow. Ideal for midsized pickups and SUVs, this plow knows a thing or two about how to get things done—and done right.

DEFENDER™

Unique features

Previous Next

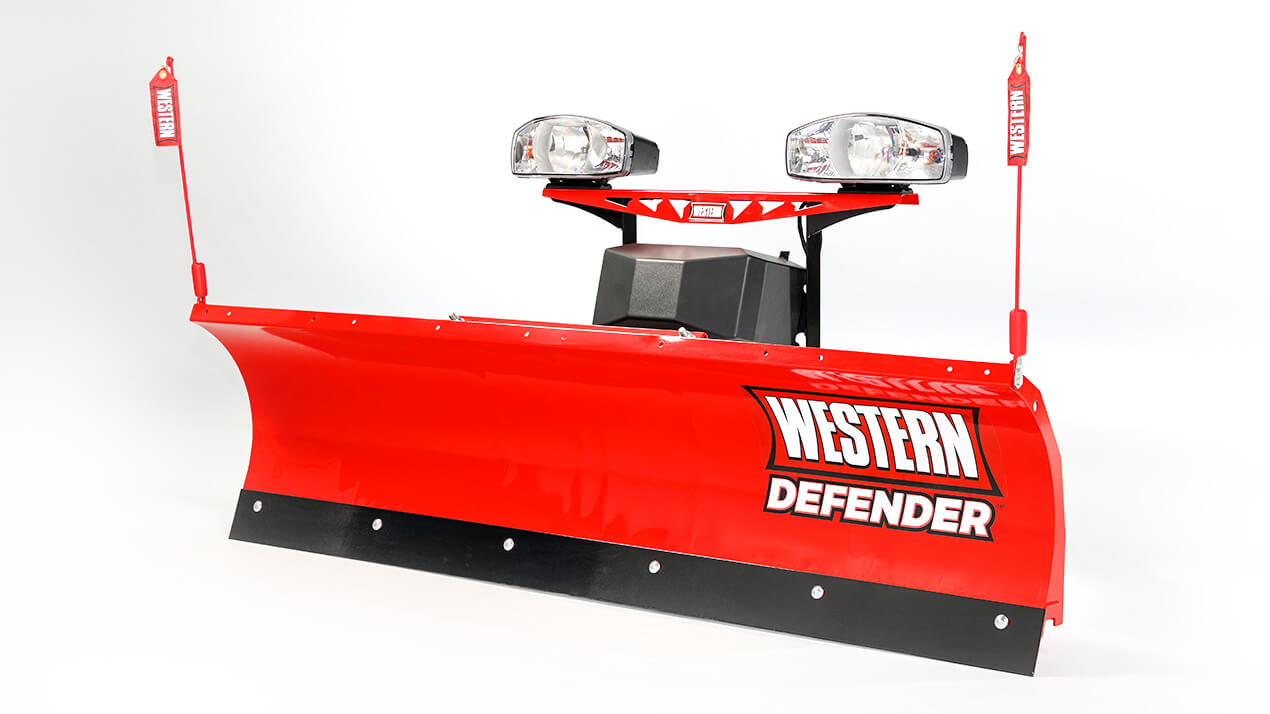

PLOW BLADE CONSTRUCTION

The reliable, 16-gauge, powder coated steel moldboard is 23½" tall and available in 6' 8" and 7' 2" widths for rugged snow plowing performance without the extra weight.

The DEFENDER™ snow plow comes standard with a high-carbon steel cutting edge that reduces wear and extends the life of the blade.

Previous Next

STRUCTURAL REINFORCEMENT

Six vertical ribs provide unmatched structural reinforcement, delivering exceptional torsional strength and rigidity to eliminate blade twisting.

The high-strength steel base channel provides extra support along the bottom of the plow blade.

The 1" diameter pivot bushing secures the plow in place, ensuring proper alignment and reducing stress on the overall plow assembly.

Previous Next

RELIABLE HYDRAULICS

We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.

Fully enclosed components are protected from the elements.

Hydraulic Scrape Lock holds the blade down for more efficient scraping and clean back dragging.

Previous Next

TRIP PROTECTION

The two-spring trip blade protects your snow plow and truck when striking hidden obstacles.

Elastomeric bumpers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow.

Previous Next

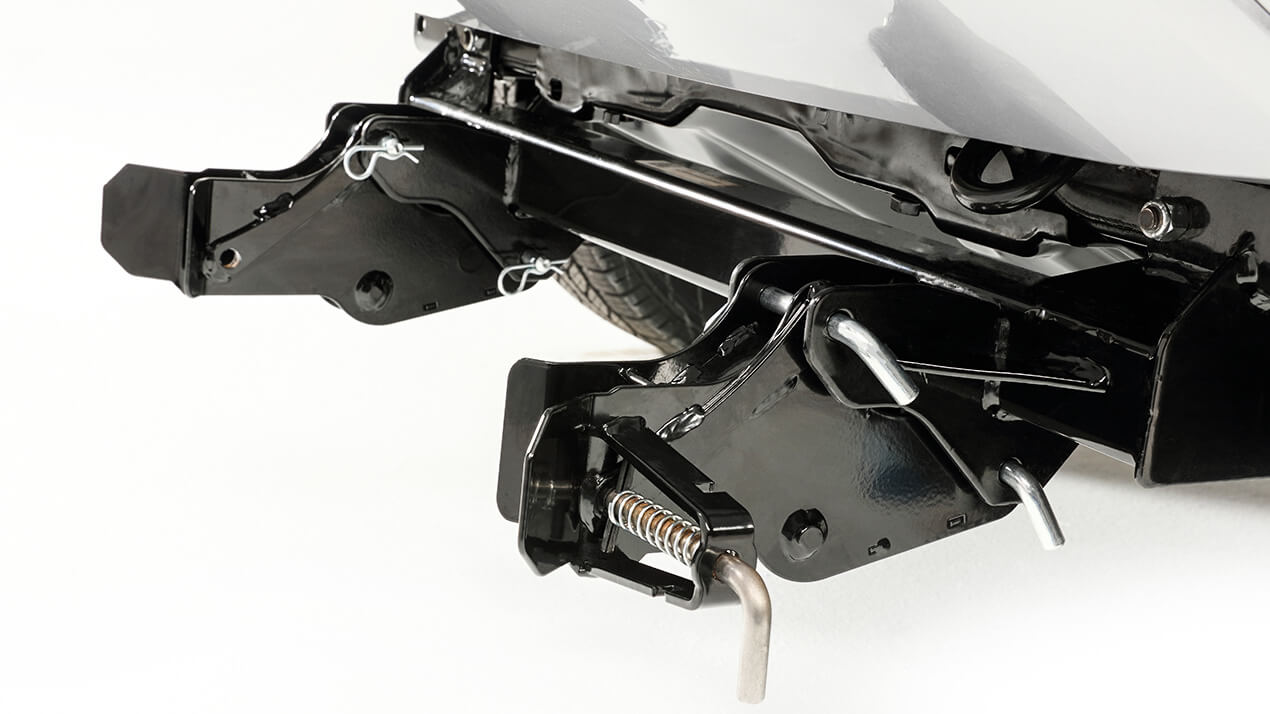

EASY ON / EASY OFF

A simple mechanical attaching system makes hooking up and removing your plow quick and easy.

Attaching the DEFENDER™ snow plow can be done quickly and easily by one person and without tools.

Simply drive into the attaching arms on the plow, then connect the two spring-loaded pins. Remove the stand, and finally, connect the electrical plugs.

Detaching the plow is just as easy. The receivers are detachable to maintain ground clearance.

Previous Next

GROUND CLEARANCE

When the plow is not in use, quickly maximize vehicle ground clearance with the removable receiver brackets. No tools required.

UNIVERSAL FEATURES

NIGHTHAWK™ Headlamps

Available in both LED and Dual-Halogen models, NIGHTHAWK™ headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm.

LED Headlamps - LEARN MORE

Dual-Halogen Headlamps - LEARN MORE

SECURITY GUARD™ Anti-Theft System

The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft.

CONTROL OPTIONS

Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.

ULTRAFINISH™ BAKED-ON POWDER COAT

The ULTRAFINISH™ baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust.

SCRAPE LOCK

The WESTERN® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.

Pre-Punched Blades for Accessories

The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.

FEATURED ACCESSORIES

STEEL CUTTING EDGE

This 3/8" cutting edge fits the same hole pattern as the 1/4" cutting edge that comes standard on your blade from the factory. Made of abrasion-resistant, high-carbon steel, the 3/8" cutting edge gives your DEFENDER™ snow plow extra wearability by increasing the surface area at the point of contact.

RUBBER DEFLECTOR

Control the snow and always see where you're going with optional deflectors. Our 2-ply rubber snow deflectors include bolt-on steel plates to ensure proper positioning of the deflectors to keep your view clear and clean.

CURB GUARDS

Go right up to the edge with bolt-on curb guards. Protect the outer edge of your snow plow from wear when plowing along sidewalks and curbs. Made of cast metal, each curb guard effectively protects the outer edge of the plow.

PRODUCT SPECIFICATIONS

Print
Models 6' 8" 7' 2"
Blade Width 6' 8" 2.03 m 7' 2" 2.1 m
Blade Height 23 ½" 59.7 cm 23 ½" 59.7 cm
Blade Gauge 16 1.5 mm 16 1.5 mm
Trip Springs 2 2 2 2
Vertical Ribs 6 6 6 6
Plowing Width (Full Angle) 5' 11" 1.8 m 6' 4 ½" 1.9 m
Approx. Weight* 290 lb 132 kg 297 lb 135 kg
Cutting Edge ÂĽ" x 5" 0.6 cm x 12.7 cm ÂĽ" x 5" 0.6 cm x 12.7 cm

*Does not include vehicle mount. Please refer to the Quick Match program for specific vehicle applications.
