PUT YOUR
HALF-TON
TO WORK

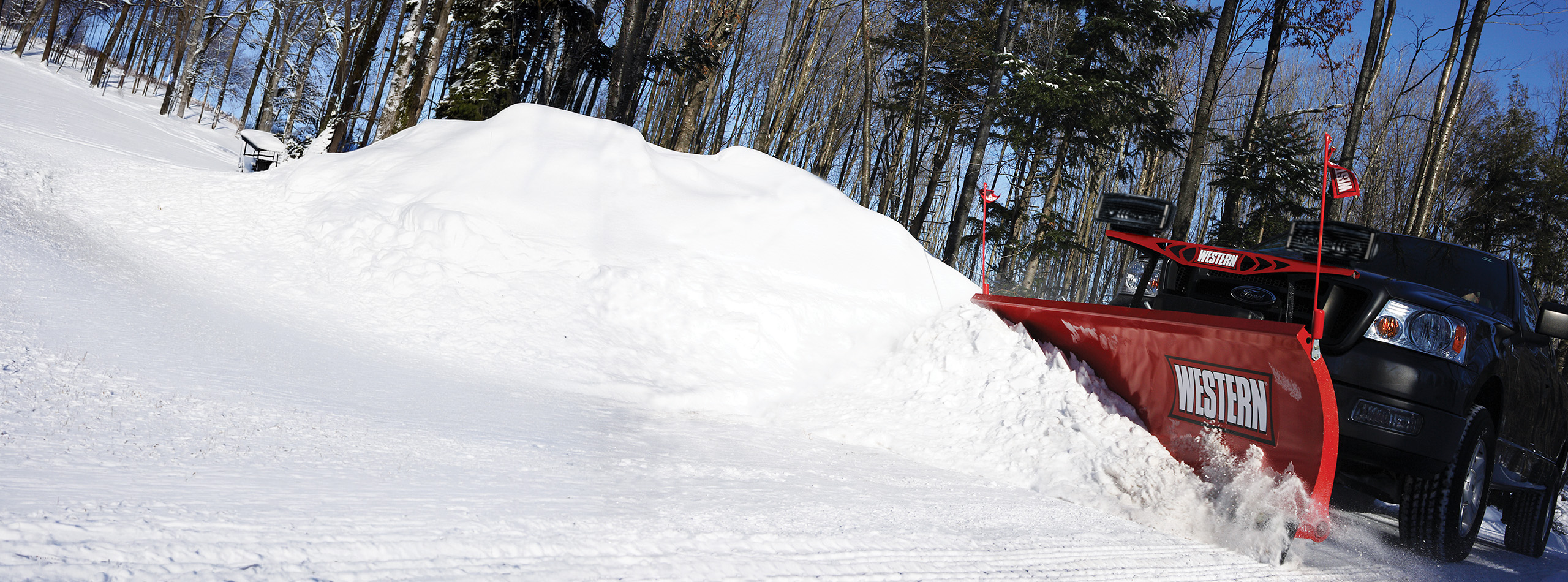

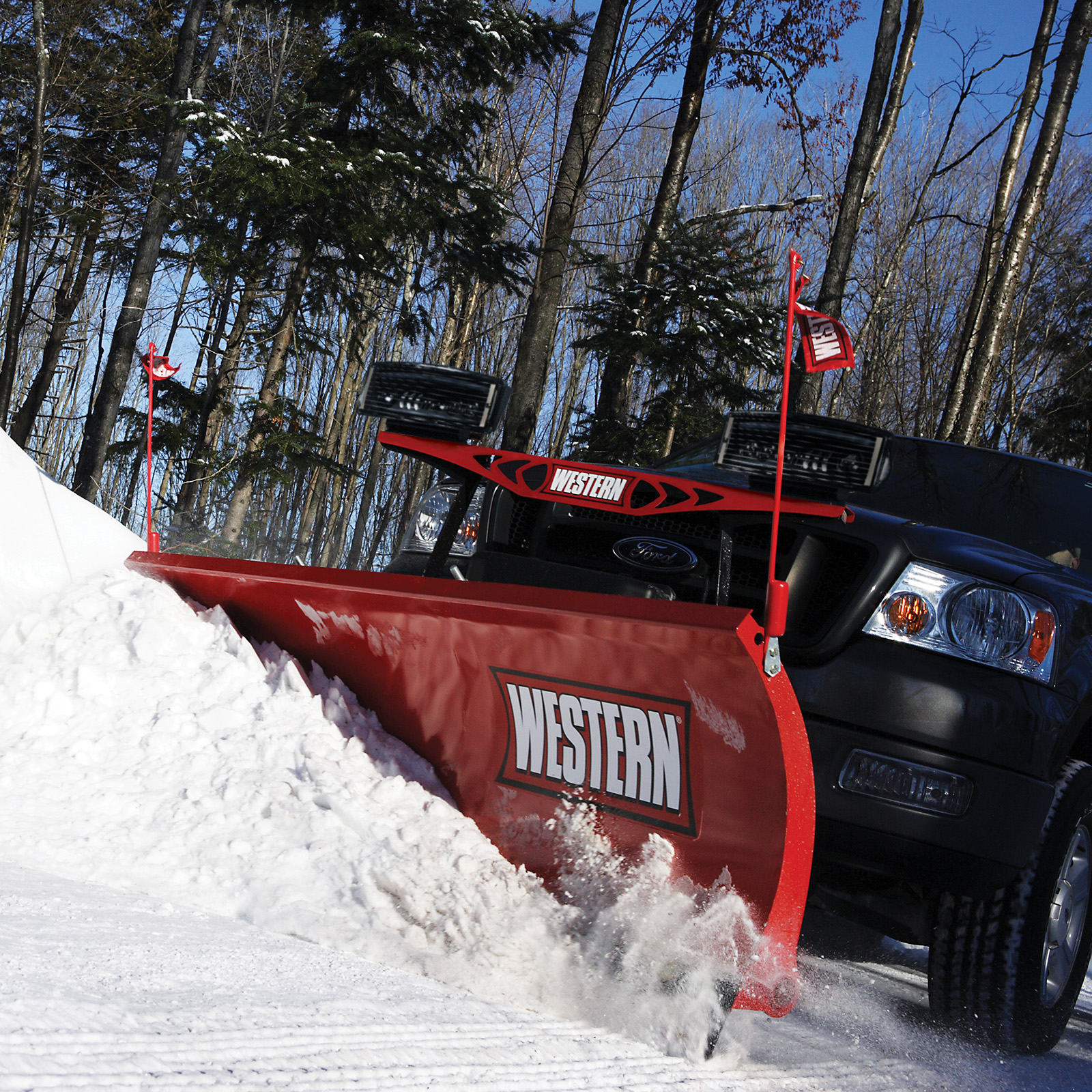

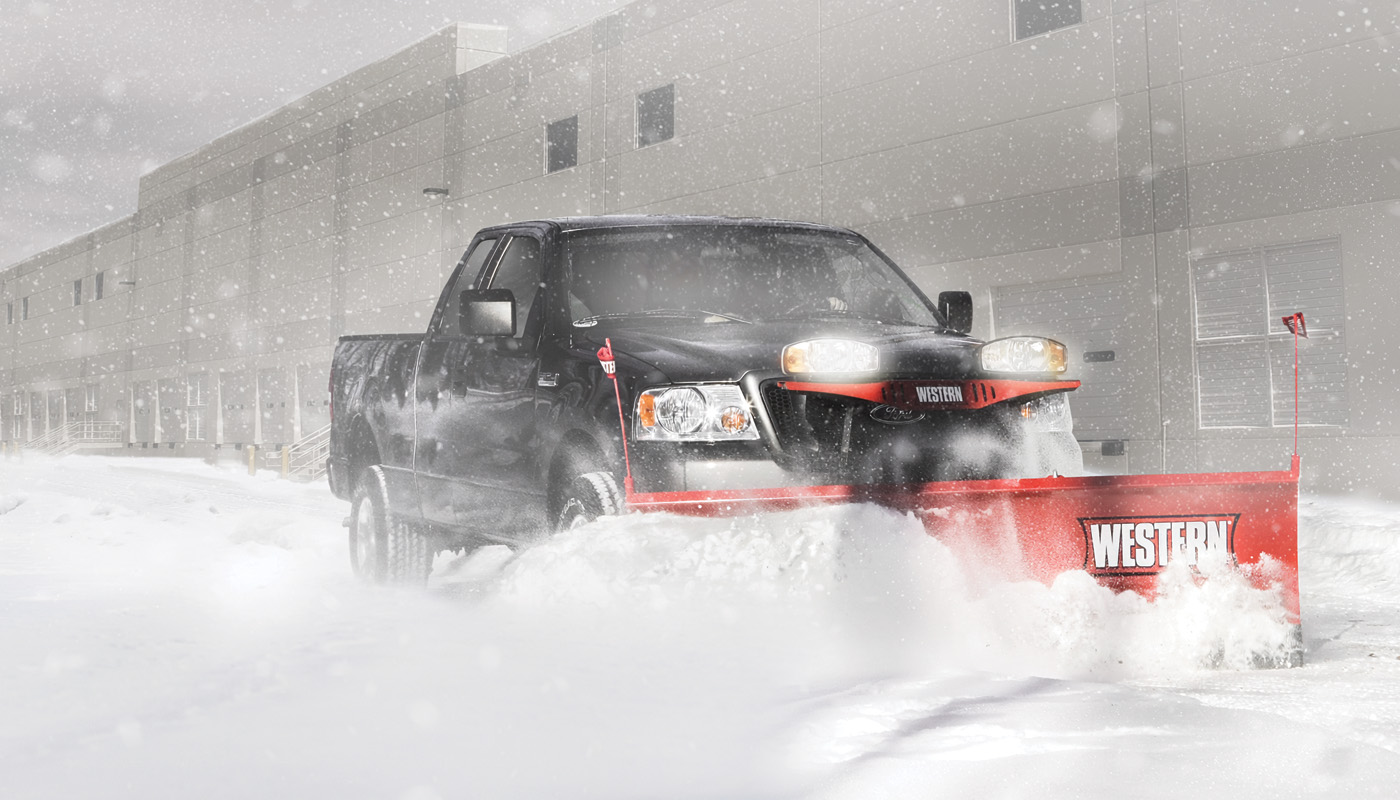

Perfect for contractors and homeowners, the WESTERN® HTS™ snow plow is a full-size, full-featured plow designed for lighter half-ton, four-wheel-drive trucks. Engineered for strength and weight, this plow is ideal for personal and light commercial applications such as driveways, small commercial lots and parking spaces.
The reliable 14-gauge powder coated steel moldboard is 27" tall and 7' 6" wide for rugged snow plowing performance without the extra weight.
The HTS™ snow plow features an aggressive 75-degree attack angle for a clean scrape, and comes standard with a high carbon steel cutting edge that reduces wear and extends the life of the blade.
Six vertical ribs and the exclusive WESTERN® POWER BAR provide unmatched structural reinforcement, delivering exceptional torsional strength and rigidity to eliminate blade twisting.
The high-strength steel base channel provides extra support along the bottom of the plow blade.
The 1" diameter pivot bolt secures the plow in place, ensuring proper alignment and reducing stress on the overall plow assembly.
We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.
Fully enclosed components are protected from the elements.
Hydraulic Scrape Lock holds the blade down for more efficient scraping and clean back dragging.
The two-spring trip blade protects your snow plow and truck when striking hidden obstacles.
Elastomeric bumpers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow.

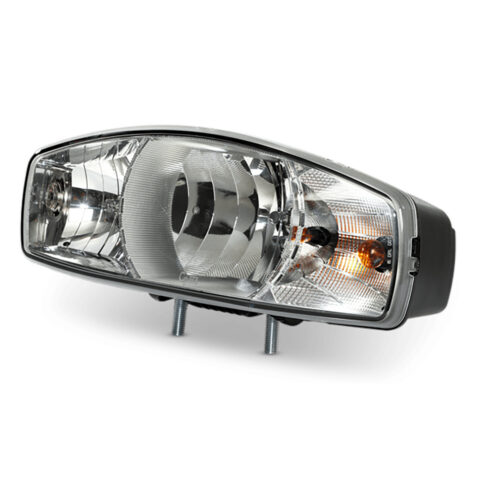

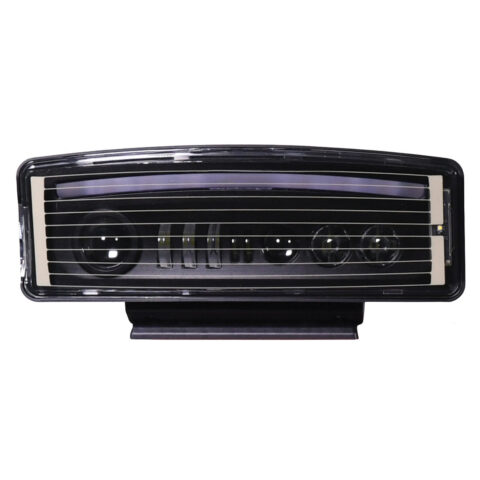

This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.
The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.
Ensure a clean scrape, every time, when you back drag. Angled to maximize back dragging, the WESTERN® back drag edge is constructed to be as rugged and durable as every other component of your plow. Easy to install and easy to use, a back drag edge is a key tool in any snowfighter's kit.
Go right up to the edge with bolt-on curb guards. Protect the outer edge of your snow plow from wear when plowing along sidewalks and curbs. Made of cast metal, each curb guard effectively protects the outer edge of the plow.
Protect your plow and the road. Ride above the uneven surfaces of gravel and dirt with plow shoes. The cast iron construction and shape ensures that your plow glides over gravel and dirt at the perfect height. Bolt-on shoe kit extends cutting edge and base angle life when plowing rocky or abrasive surfaces.
| Models | 7' 6" |
|---|---|
| Blade Width | 7' 6" |
| Blade Height | 27" |
| Blade Gauge | 14 |
| Trip Springs | 2 |
| Vertical Ribs | 6 |
| Lift Cylinder | 2" x 6 ¾" |
| Angling Rams | 1½" x 8" |
| Plowing Width (Full Angle) | 6' 7" |
| Approx. Weight* | 412 lb |
| Cutting Edge | 5/16" x 6" |
| Mount Type | UltraMount® |
| Models | 7' 6" |
|---|---|
| Blade Width | 2.29 m |
| Blade Height | 68.58 cm |
| Blade Gauge | 1.98 mm |
| Trip Springs | 2 |
| Vertical Ribs | 6 |
| Lift Cylinder | 5.08 cm x 17.145 cm |
| Angling Rams | 3.81 cm x 20.32 cm |
| Plowing Width (Full Angle) | 2.01 m |
| Approx. Weight* | 186 kg |
| Cutting Edge | 0.80 cm x 15.24 cm |
| Mount Type | UltraMount® |
*Does not include vehicle mount. Please refer to the Quick Match program for specific vehicle applications.
