A latching, molded polyethylene lid protects de-icing material from the elements.
A DIFFERENT POINT OF VIEW
Low Profile TAILGATE SPREADERS
CONSIDER IT DONE.

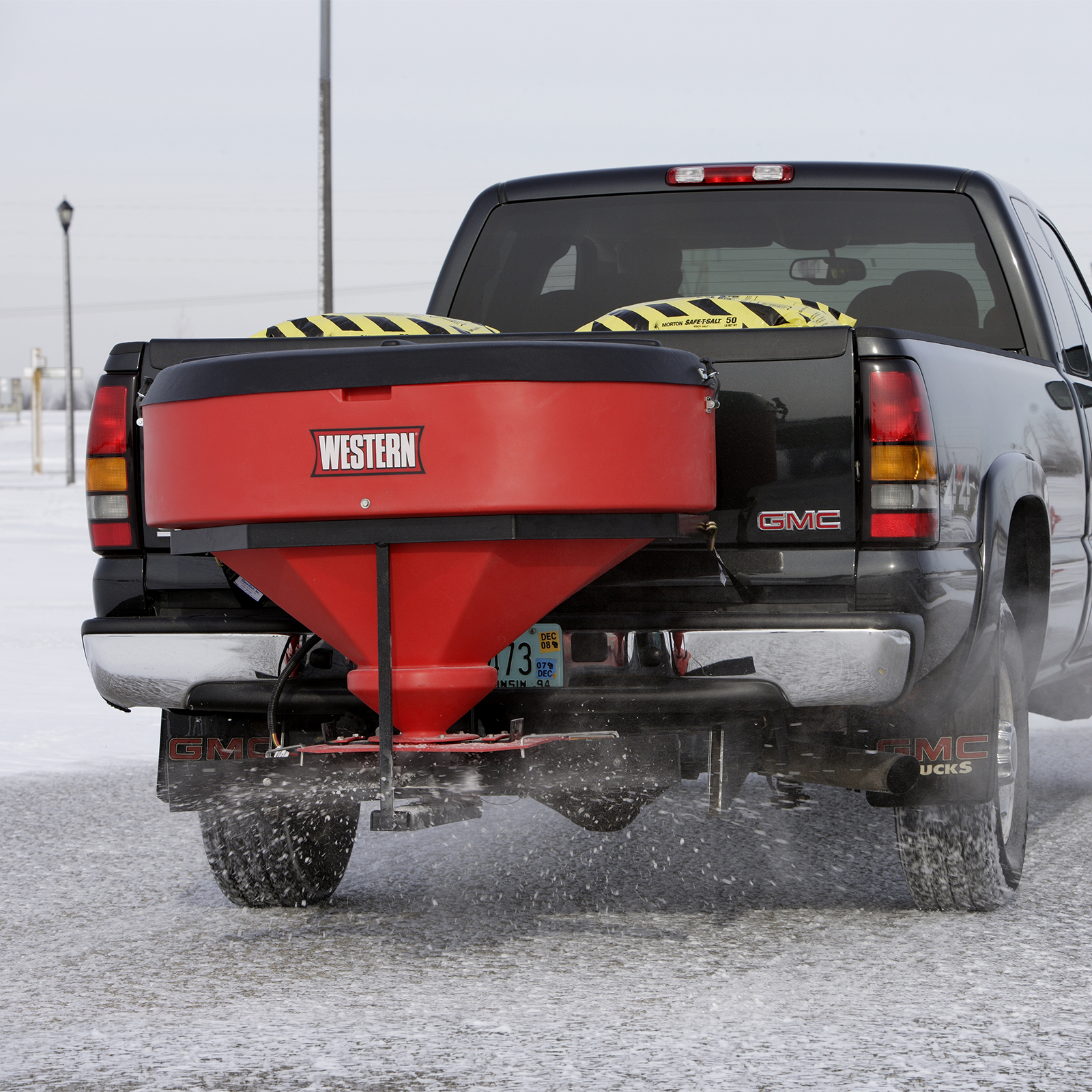

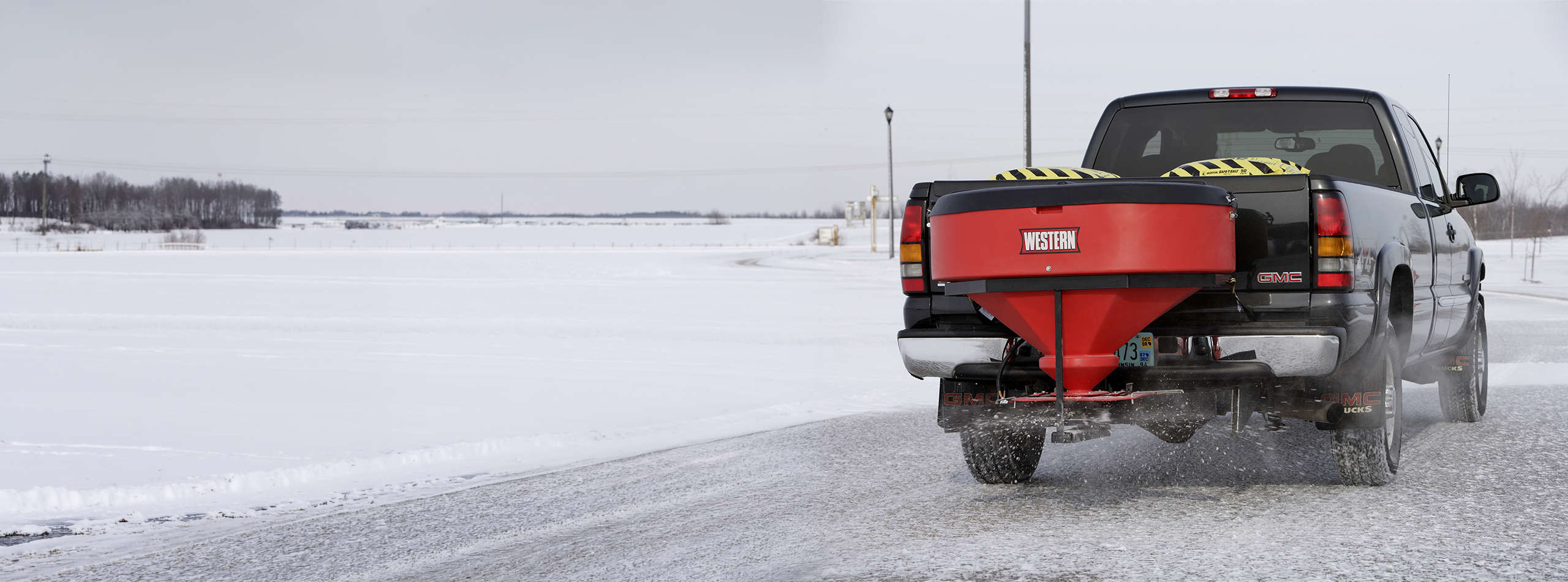

Get a better look at your high-quality work as you move onto the next job with the WESTERN® Low Profile tailgate spreaders. These high-density, single-stage, poly tailgate spreaders sit lower on trucks to deliver top spreader performance without affecting the operator's view from behind the wheel.
Unique Features

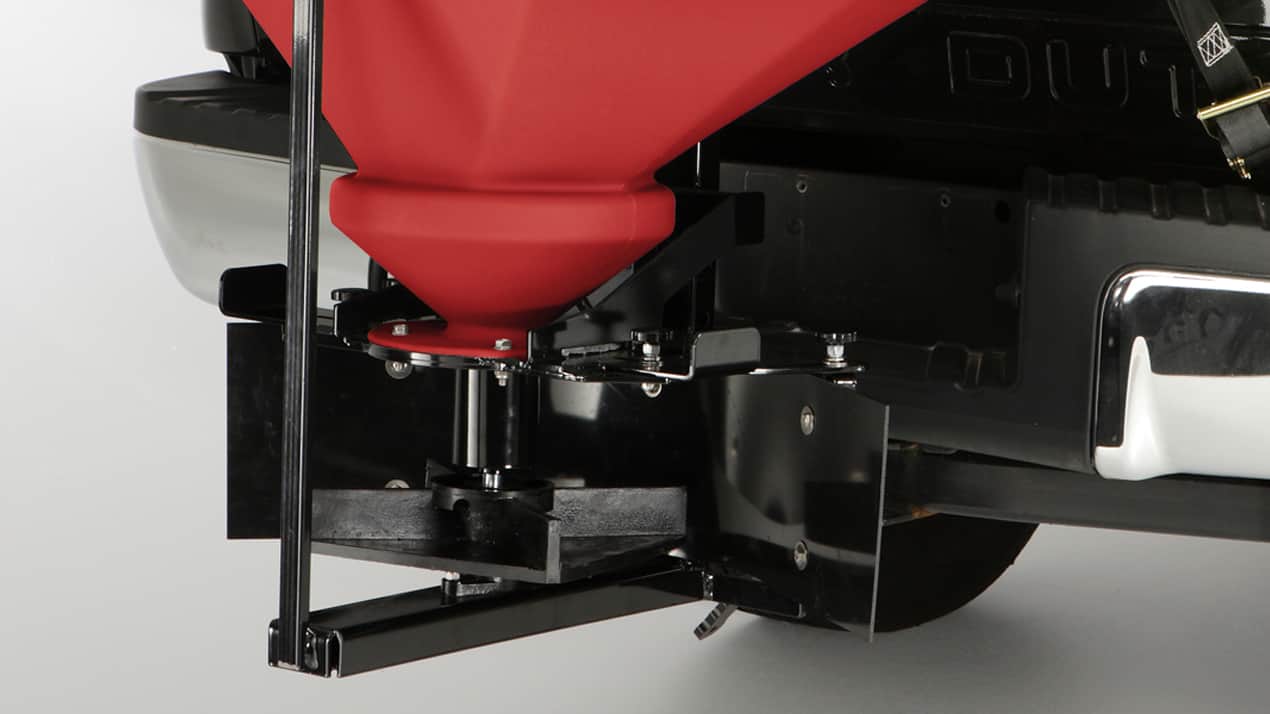

Electric Motor
A fully enclosed 12-volt electric, 1/3 HP motor is mounted inside a sealed housing, protecting it from corrosion.

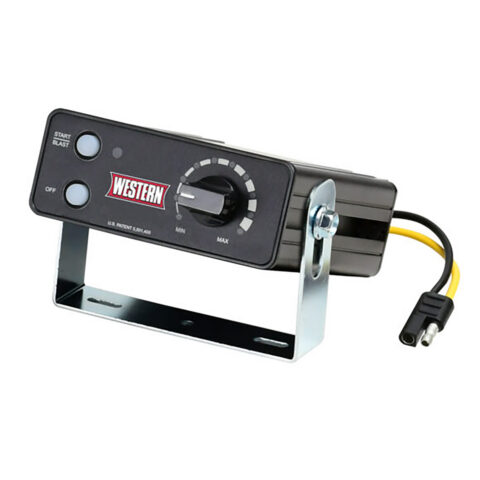

Controls
Choose between a variable speed control with an "on/off" button and blast option to optimize material usage or a basic "on/off" toggle control (controls are sold separately).
Corrosion-Resistant Hopper
The low profile tailgate spreaders feature corrosion-free polyethylene hoppers for long-lasting durability.
.jpg)

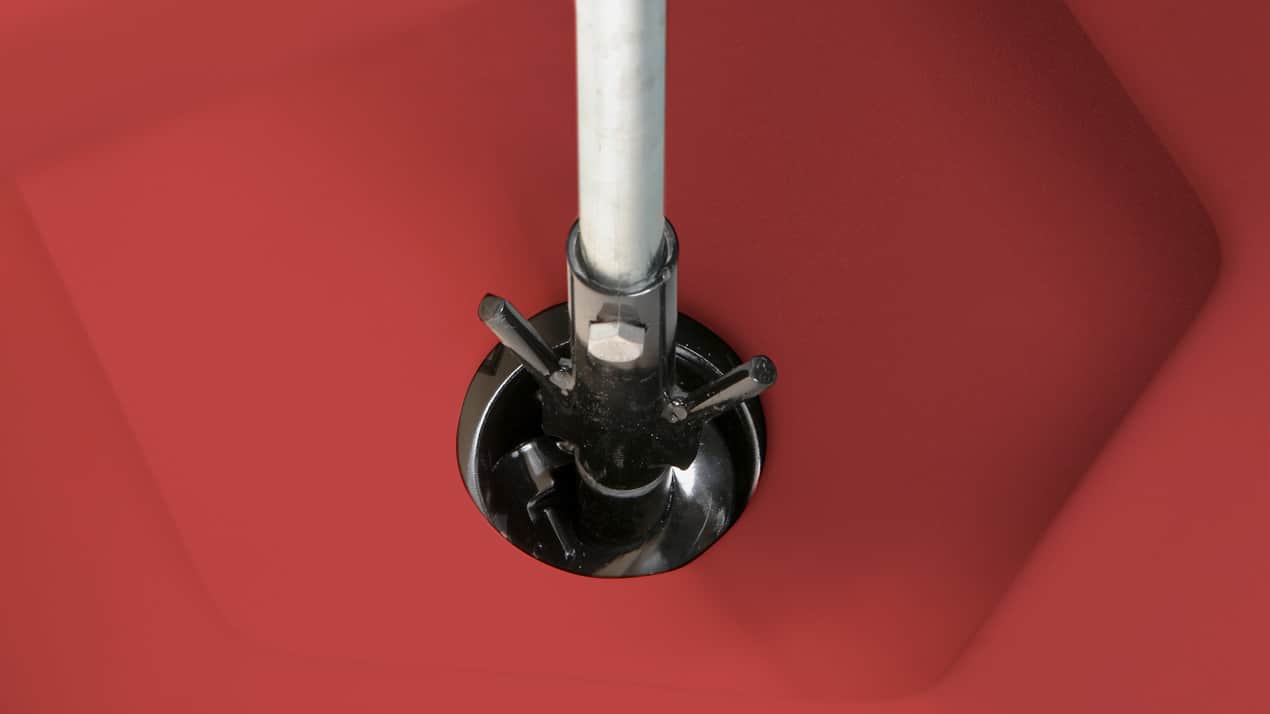

Material Delivery
Material is delivered by a powder coated, vertical steel auger to provide long-lasting, reliable performance.
Spinner
Models 500 and 1000 both feature a durable 10" polyurethane spinner that delivers a spread pattern of up to 30'.
Model 2500 comes standard with a large, 15" polyurethane spinner that delivers a spread pattern of up to 30'.
Adjustable Feed Gate
On Model 2500, a specialized "saw tooth" feed gate and auger design combine to deliver complete, reliable flow control with positive shut-off, eliminating spillage and waste.

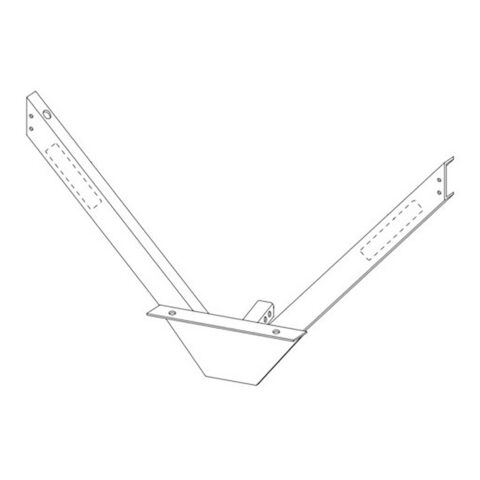

Mounting Options

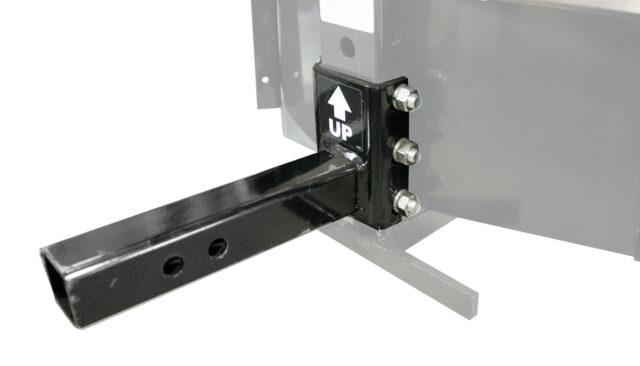

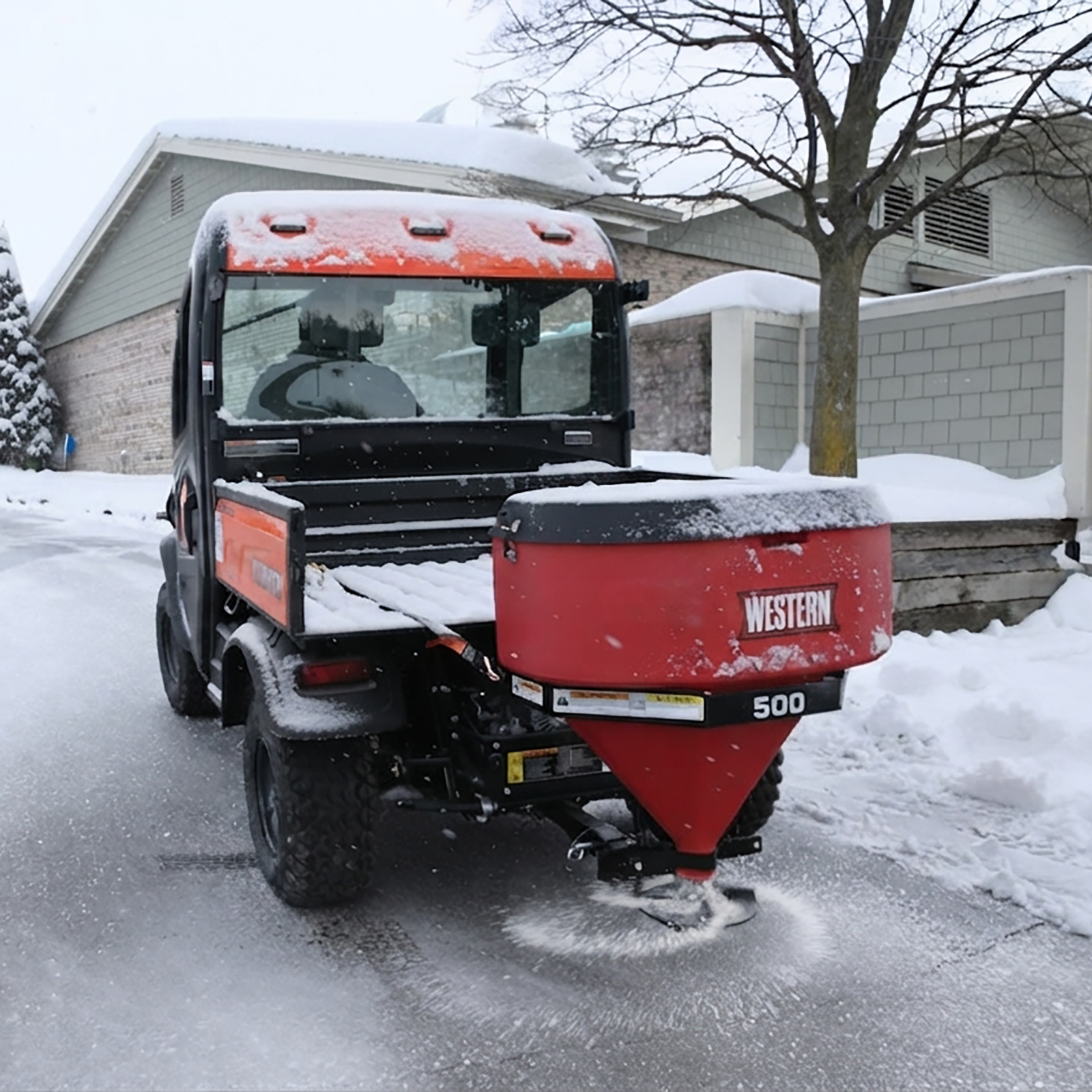

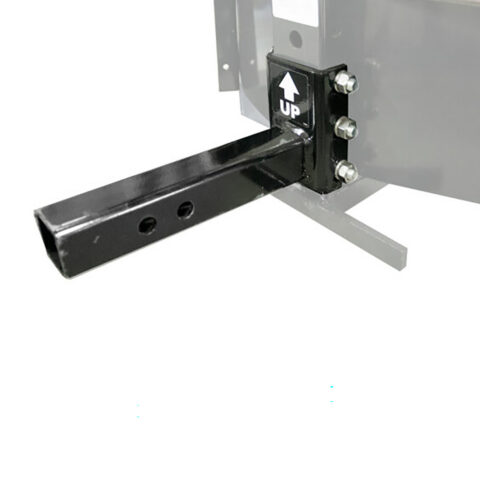

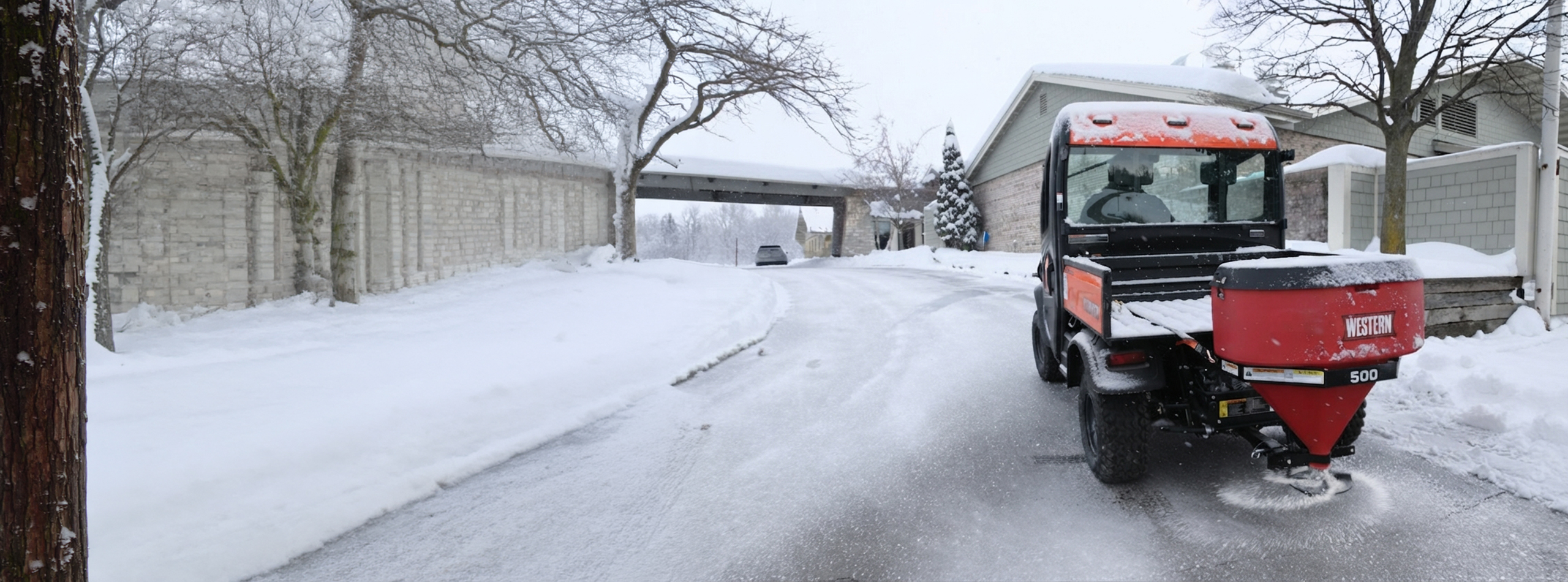

The Model 500 tailgate spreader comes standard with a Class III receiver hitch mount.

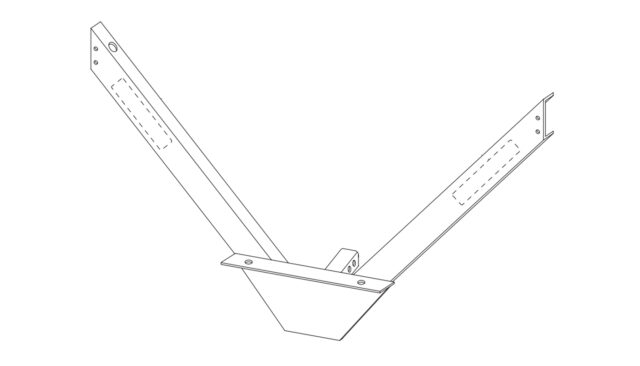

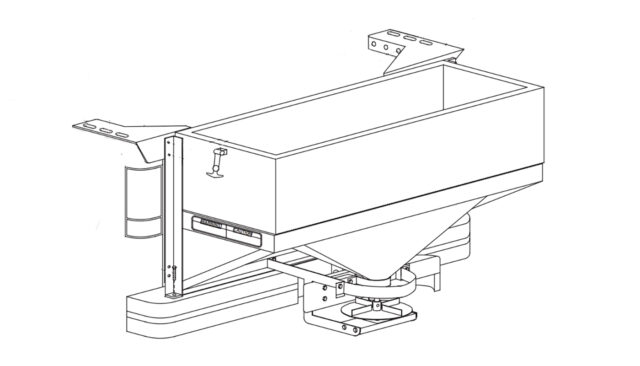

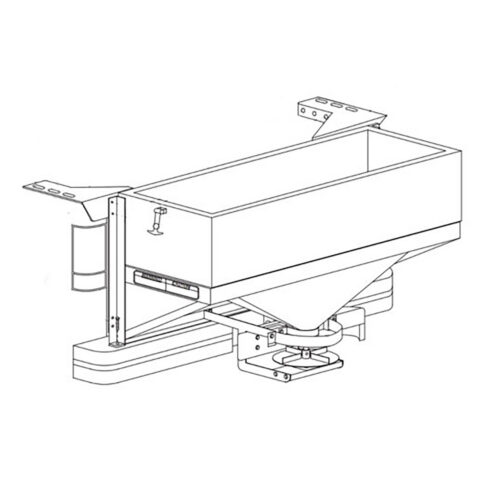

The Model 1000 tailgate spreader requires the additional purchase of one of the available mount options: a Class IV receiver hitch mount, a fixed bumper mounting system, or the SWING AWAY® mount.
The Model 2500 tailgate spreader comes standard with a Class IV receiver hitch mount.
Optional Top Screen
Optional on all three models, a coated steel top screen helps break up large chunks of de-icing material during the loading process to help prevent clogging and bridging during spreader operation.
Ratchet Straps
Add additional spreader stability to your vehicle with nylon tie-down ratchet straps. Standard on the 500 and 2500 models only.
Featured Accessories
Dielectric Grease
Don’t risk corrosion problems—use WESTERN® dielectric grease! Western Products recommends all owners consistently use our special formulation dielectric grease to protect all electrical connections in the tough winter snow, ice, and salt conditions.
EXTREME DEFENSE™ GREASE
Protect and maintain moving components within snow and ice equipment including bearings, hinges and pivot bolts with EXTREME DEFENSE™ Grease. WESTERN’s specially designed blend is optimized for the cold, wet and dirty environment common to snow and ice management. Custom formula maintains viscosity from -40 up to 300 degrees, and military-grade, corrosion-prevention additives protect equipment investments for the long haul with no harmful environmental side effects. EXTREME DEFENSE Grease is available in cartridges, pails, totes and drums.
Product Specifications
| Models | Model 500 | Model 1000 | Model 2500 |
|---|---|---|---|
| Capacity | 5.00 cu ft | 8.00 cu ft | 8.50 cu ft |
| Hopper Construction | Polyethylene | Polyethylene | Polyethylene |
| Dimensions Overall (LxWxH) | 21" x 39" x 34" | 19 ½" x 50 ½" x 35" | 25" x 50" x 42" |
| Approx. Weight (empty) | 75 lb with mount | 105 lb w/o mount | 131 lb with mount |
| Motor | 1/3 hp | 1/3 hp | 1/3 hp |
| Auger (diam. x length) | 2.63" x 6" | 2.63" x 6" | 2.63" x 9" |
| Spinner Size | 10" | 10" | 15" |
| Spreading Width | Up to 30' | Up to 30' | Up to 30' |
| Materials | Salt | Salt | Salt |
| Vehicle Application | Vehicles with Class III Hitch | Full Size Trucks (over 6,000 lb GVWR) | Full Size Trucks (over 6,000 lb GVWR) |
| Available Mounts | Standard Class III Receiver Hitch Mount | Optional Fixed Mount, Class IV Hitched Mount, Dual Swing Mount | Standard Class IV Hitch Mount |
| Models | Model 500 | Model 1000 | Model 2500 |
|---|---|---|---|
| Capacity | 0.14 cu m | 0.23 cu m | 0.24 cu m |
| Hopper Construction | Polyethylene | Polyethylene | Polyethylene |
| Dimensions Overall (LxWxH) | 53.34 cm x 99.06 cm x 86.36 cm | 49.53 cm x 128.27 cm x 88.90 cm | 63.50 x 127 x 106.68 cm |
| Approx. Weight (empty) | 34 kg with mount | 47 kg w/o mount | 59 kg with mount |
| Motor | 1/3 HP | 1/3 HP | 1/3 HP |
| Auger (diam. x length) | 6.68 cm x 15.24 cm | 6.68 cm x 15.24 cm | 6.68 cm x 22.86 cm |
| Spinner Size | 25.40 cm | 25.40 cm | 38.10 cm |
| Spreading Width | Up to 9.14 m | Up to 9.14 m | Up to 9.14 m |
| Materials | Salt | Salt | Salt |
| Vehicle Application | Vehicles with Class III Hitch | Full Size Trucks (over 6,000 lb GVWR) | Full Size Trucks (over 6,000 lb GVWR) |
| Available Mounts | Standard Class III Receiver Hitch Mount | Optional Fixed Mount, Hitched Mount, Dual Swing Mount | Standard Class IV Hitch Mount |
