PUSH THROUGH
THE DEPTHS
OF WINTER

MVP 3™

V-PLOW

STRENGTH COMES FROM RELIABILITY

The rugged MVP 3™ v-plow gives you all the power, productivity and performance you need for commercial snowplowing. With extreme flared wings, up to 45″ on the heavy-duty 10′ 6″ model, and double-acting cylinders, the MVP 3 v-plow has earned its reputation as a reliable plow by consistently delivering on what matters most—getting more jobs done faster.

For MVP 3 availability, check with your local dealer.

MVP 3™

Unique features

Previous Next

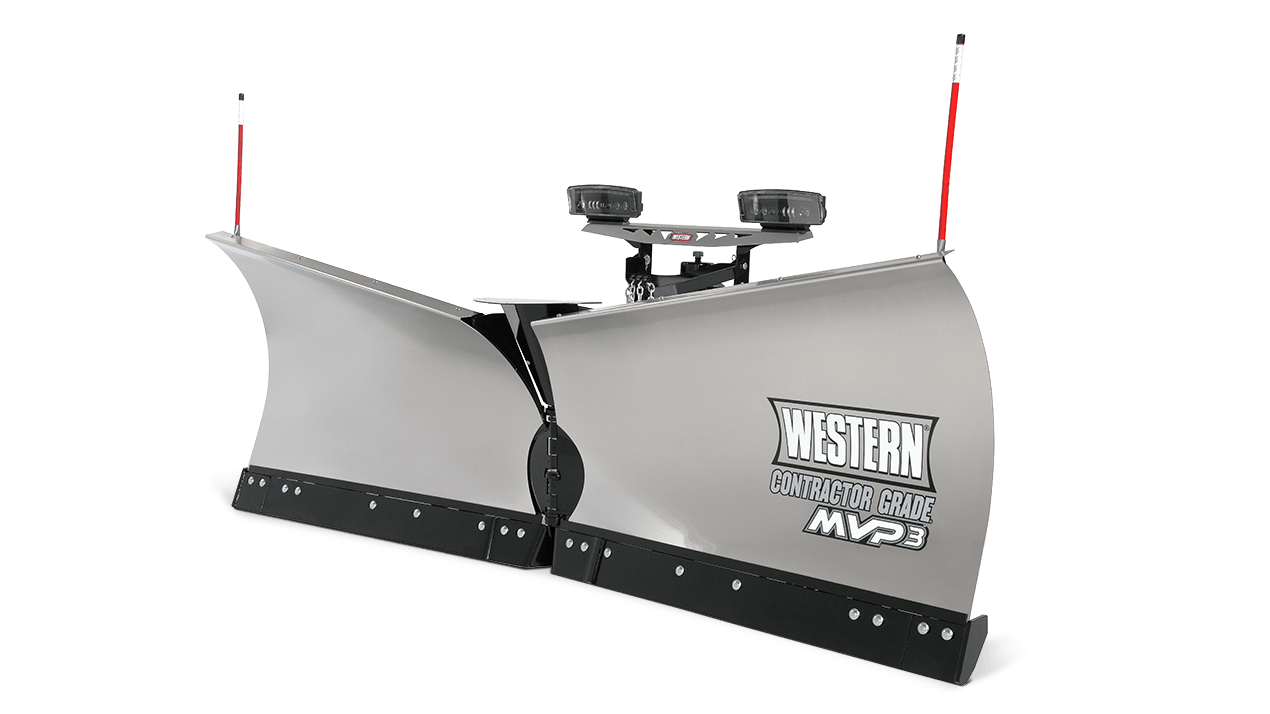

PLOW BLADE CONSTRUCTION

The MVP 3™ flared v-plow blades soar from a 35" center height up to a full 45" at the outer edge on heavy-duty 10' 6" models.

The MVP 3 v-plow is available in 14-gauge powder coated and stainless steel in 7' 6", 8' 6", and 9' 6" widths. It is also available in 1/4" high-density polyethylene in 8' 6" and 9' 6" widths.

10' 6" models are available in 11-gauge powder-coated steel and 12-gauge stainless steel options.

All MVP 3 models feature a clean-scraping 70-degree attack angle, and come with a standard 6" high-carbon steel cutting edge to reduce wear and extend the life of the blade.

Previous Next

STRUCTURAL REINFORCEMENT

Six vertical ribs on the 7' 6" model and eight on the 8' 6", 9' 6" and 10' 6" models, combined with the exclusive WESTERN® POWER BAR, provide exceptional torsional strength and rigidity to eliminate blade twisting.

The high-strength steel base channel provides extra support along the bottom of the plow blade.

A 1ÂĽ"-diameter, heat-treated steel center pin resides within a three-connection-point hinge, keeping the wings tight for optimal performance.

*9' 6" model shown

Previous Next

DOUBLE-ACTING CYLINDERS

As a standard feature on the MVP 3™, UltraLock double-acting cylinders allow the operator to use the v-plow in straight blade mode by locking the wings together instead of having to toggle each wing independently.

The double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

Previous Next

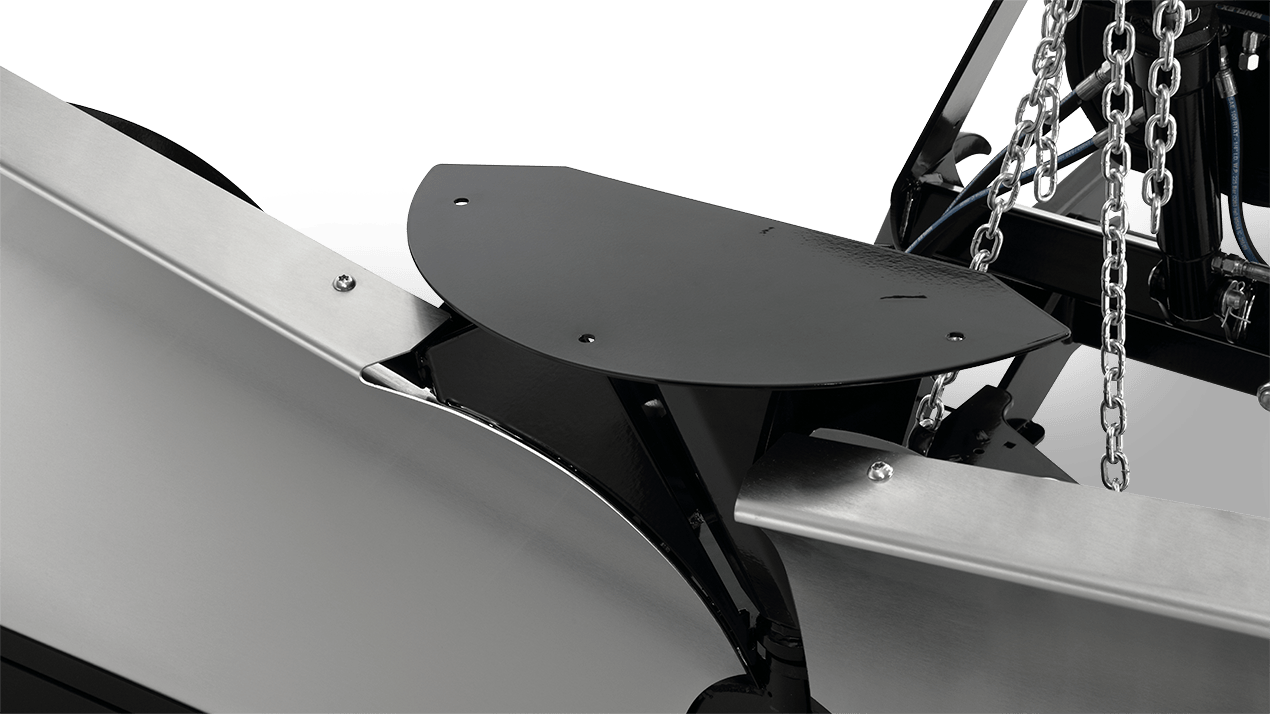

STEEL CENTER GAP COVER

For the cleanest pass in any position, the MVP 3™ v-plow has a snow control deflector over the center hinge to help prevent snow from being lost over the top.
Previous Next

RELIABLE HYDRAULICS

We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.

Fully enclosed components are protected from the elements.
Previous Next

TRIP PROTECTION

Each blade features independent trip-edge design with heavy-duty coil springs for protection when encountering bumps and obstacles. Whether in V, scoop, or straight blade configuration, the trip edge helps protect the plow, the truck, and the operator. Since only the edge trips, snow remains in front of the blade, so you can keep going without spilling the entire load of snow.

Previous Next

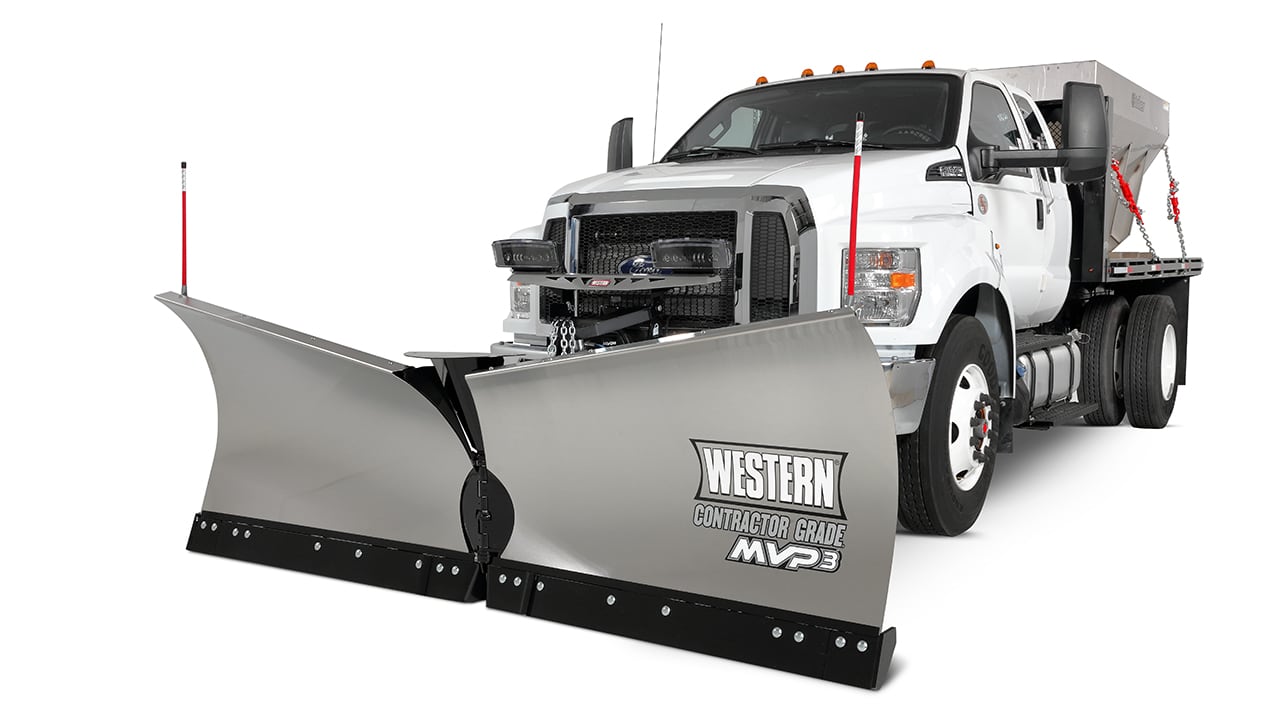

10' 6" HEAVY-DUTY FEATURES

10' 6" MVP 3™ v-plow models come standard with specific heavy-duty features.

Blade Construction: Thicker moldboards and a more robust base angle with additional hinge points.

Heavy-Duty T-Frame: Features a solid, one piece construction, from front to back, and an oscillating pivot bar.

Standard Blade Angle Stops: Designed to transfer extreme impacts throughout the blade's structure and reduce stress on the hydraulic rams.

Standard Curb Guards: Constructed of abrasion-resistant material and designed to fit tight to the blade, these curb guards protect the outer edge of the plow from wear when plowing along sidewalks and curbs.

UNIVERSAL FEATURES

NIGHTHAWK™ Headlamps

Available in both LED and Dual-Halogen models, NIGHTHAWK™ headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm.

LED Headlamps - LEARN MORE

Dual-Halogen Headlamps - LEARN MORE

UltraMount® 2 Snowplow Mounting System

The UltraMount® 2 system is designed for fast and easy installation and removal using a simple mechanical system. It features a robust one-piece design and is 100% compatible with UltraMount® system mounts and electrical platforms.

Learn More

Chain Lift System

The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system.

Learn More

FLEET FLEX ELECTRICAL SYSTEM

The FLEET FLEX electrical system provides true fleet interchangeability. The same FLEET FLEX CabCommand hand-held or joystick control can operate any UltraMount® and UltraMount® 2 mounted plow on any truck at any time.

Learn More

SECURITY GUARD™ Anti-Theft System

The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft.

Learn More

CONTROL OPTIONS

Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.

Learn More

Isolation Module

This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.

ULTRAFINISH™ BAKED-ON POWDER COAT

The ULTRAFINISH™ baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust.

Learn More

Pre-Punched Blades for Accessories

The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.

FEATURED ACCESSORIES

POLY CUTTING EDGE

Sensitive surfaces found in many residential and commercial applications require a more forgiving approach. Reduce the risk of property damage with Poly Cutting Edge Kits for the 8' 6", 9' 6", and 10' 6" MVP 3.

RUBBER SNOW DEFLECTOR

Control the snow and always see where you're going with optional deflectors. The 10", 2-ply rubber snow deflector fits all MVP 3™ v-plow blades. Bolt on steel plates ensure proper positioning of the deflectors to keep your view clear and clean.

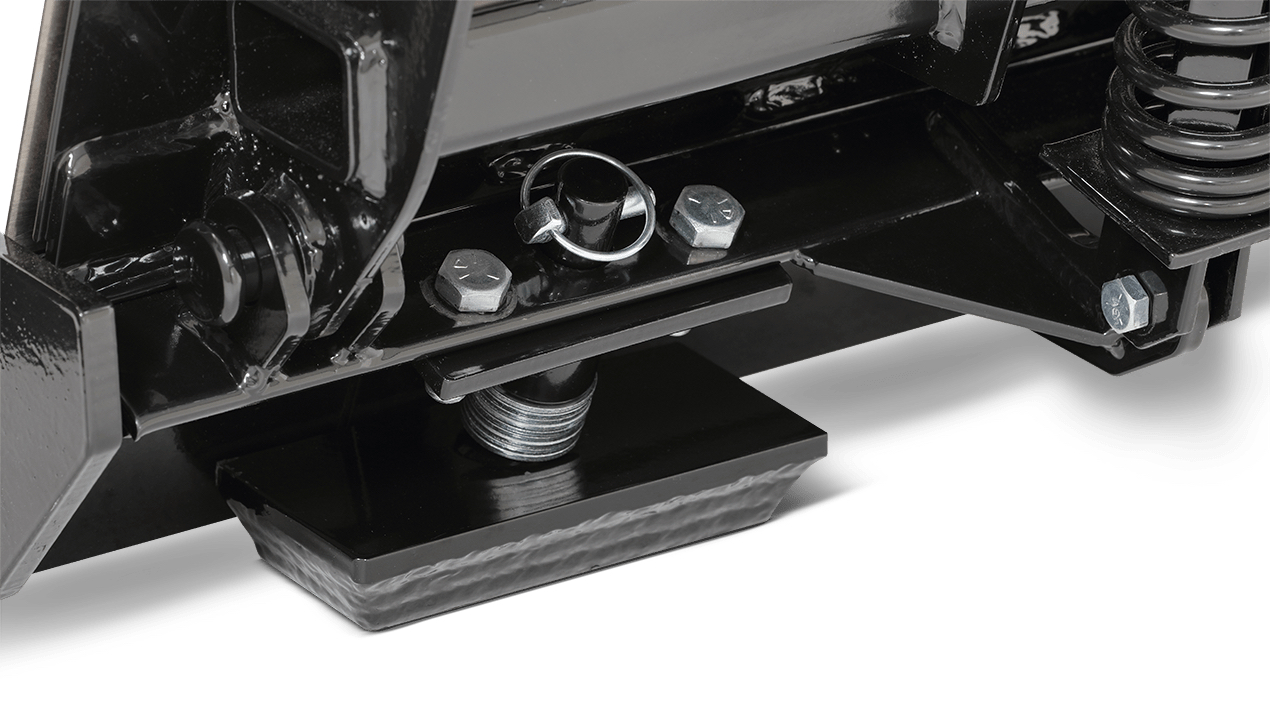

HIGH WEAR SHOE KIT

Reduce cutting edge wear rates by increasing the surface area in contact with the ground using the new high wear shoe kit designed specifically for the MVP 3. Composed of wear resistant AR400 material, these kits are designed with the most aggressive municipal and commercial plowing applications in mind.

View All MVP 3™ Accessories

PRODUCT SPECIFICATIONS

Print
Models 7' 6" SS or PC 8' 6" SS or PC 8' 6" Poly 9' 6" SS or PC 9' 6" Poly 10' 6" SS or PC
Blade Width 7' 6" 2.29 m 8' 6" 2.59 m 8' 6" 2.59 m 9' 6" 2.90 m 9' 6" 2.90 m 10' 6" 3.20 m
Blade Height 37" at End
31" at Hinge 93.98 cm at End
78.74 cm at Hinge 		38" at End
31" at Hinge 96.52 cm at End
78.74 cm at Hinge 		38" at End
31" at Hinge 96.52 cm at End
78.74 cm at Hinge 		39" at End
31" at Hinge 99.06 cm at End
78.74 cm at Hinge 		39" at End
31" at Hinge 99.06 cm at End
78.74 cm at Hinge 		45" at End
35" at Hinge 114.30 cm at End
88.90 cm at Hinge
Blade Gauge 14 1.98 mm 14 1.98 mm ÂĽ" Poly 6.40 mm 14 1.98 mm ÂĽ" Poly 6.40 mm 11 PC
12 SS 3.05 mm PC
2.66 mm SS
Trip Springs 4 4 4 4 4 4 6 6 6 6 6 6
Vertical Ribs 6 6 8 8 8 8 8 8 8 8 8 8
Lift Cylinder 1 Âľ" x 8" 4.45 cm x 20.32 cm 1 Âľ" x 8" 4.45 cm x 20.32 cm 1 Âľ" x 8" 4.45 cm x 20.32 cm 1 Âľ" x 8" 4.45 cm x 20.32 cm 1 Âľ" x 8" 4.45 cm x 20.32 cm 1 Âľ" x 8" 4.45 cm x 20.32 cm
Angling Rams 1 Âľ" x 11" 4.45 cm x 27.94 cm 1 Âľ" x 11" 4.45 cm x 27.94 cm 1 Âľ" x 11" 4.45 cm x 27.94 cm 1 Âľ" x 11" 4.45 cm x 27.94 cm 1 Âľ" x 11" 4.45 cm x 27.94 cm 2" x 11" 5.08 cm x 27.94 cm
Plowing Width 6' 7" Full Angle
6' 4" Scoop
6' 10" Full V 2.01 m Full Angle
1.93 m Scoop
2.08 m Full V 		7' 5" Full Angle
7' 2" Scoop
7' 8" Full V 2.26 m Full Angle
2.18 m Scoop
2.34 m Full V 		7' 5" Full Angle
7' 2" Scoop
7' 8" Full V 2.26 m Full Angle
2.18 m Scoop
2.34 m Full V 		8' 6" Full Angle
8' 2" Scoop
8' 7" Full V 2.59 m Full Angle
2.49 m Scoop
2.62 m Full V 		8' 6" Full Angle
8' 2" Scoop
8' 7" Full V 2.59 m Full Angle
2.49 m Scoop
2.62 m Full V 		9' 9" Full Angle
9' 7" Scoop
9' 11" Full V 2.97 m Full Angle
2.92 m Scoop
3.02 m Full V
Approx. Weight* 885 lb 401 kg 940 lb 426 kg 890 lb 403 kg 1,022 lb 463 kg 972 lb 440 kg 1,196 lb 542 kg
Cutting Edge ⅜" x 6" 0.95 cm x 15.24 cm ⅜" x 6" 0.95 cm x 15.24 cm ⅜" x 6" 0.95 cm x 15.24 cm ½" x 6" 1.27 cm x 15.24 cm ½" x 6" 1.27 cm x 15.24 cm ½" x 6" 1.27 cm x 15.24 cm
Mount Type UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2

SS = Stainless Steel | PC = Powder Coat
*Does not include vehicle mount. Please refer to the Quick Match program for specific vehicle applications.
NOTE: For MVP 3 availability, check with your local dealer.
