TAKE ON MORE

MVP PLUS

V-PLOW

V-PLOW PERFORMANCE

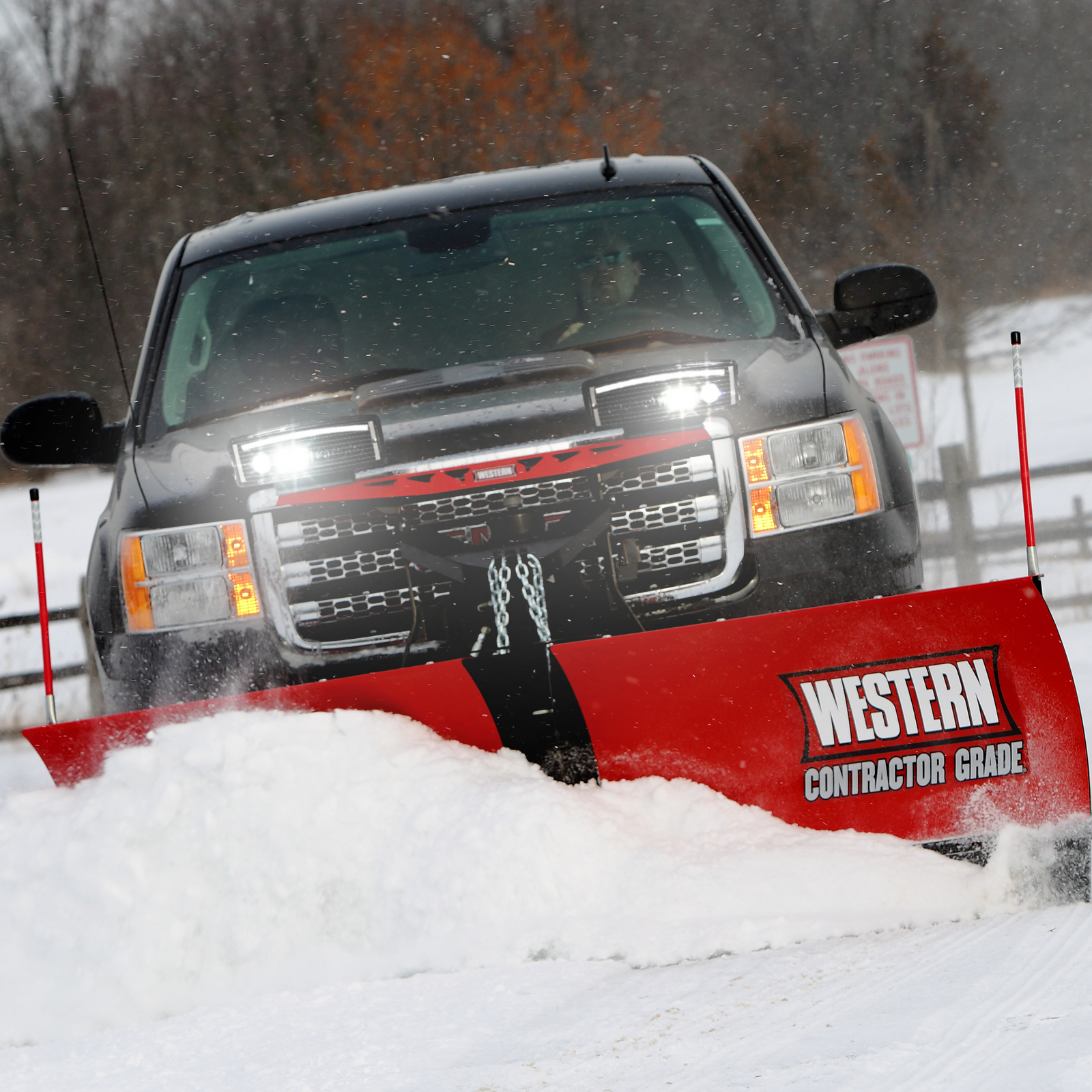

Like all WESTERN® products, the MVP PLUS v-plow is built for efficiency, durability and performance—but it also gives you the added level of productivity that only a v-plow can achieve, letting you cut through deep banks and clear more snow in fewer passes.

For MVP PLUS availability, check with your local dealer.

MVP PLUS™

Unique features

Previous Next

PLOW BLADE CONSTRUCTION

The MVP PLUS v-plow is available in 14-gauge powder coated steel or 1/4" high-density polyethylene in 7' 6", 8' 6" and 9' 6" widths.

The durable poly blade provides a slick surface for enhanced snow-rolling action and a maintenance-free surface. The steel blade features our high quality ULTRAFINISH powder coated surface.

The 70-degree attack angle provides a clean scrape, and a high carbon steel cutting edge comes standard, reducing wear and extending the life of the blade.

Previous Next

STRUCTURAL REINFORCEMENT

Six vertical ribs on the 7' 6" models and eight on the 8' 6" and 9' 6" models, combined with the exclusive WESTERN® POWER BAR, provide exceptional torsional strength and rigidity to eliminate blade twisting.

The high-strength steel base channel provides extra support along the bottom of the plow blade.

A 1" diameter steel center pin resides within a two connection point hinge, keeping the wings tight for optimal performance.

Previous Next

DOUBLE-ACTING CYLINDERS

As a standard feature on the MVP PLUS, UltraLock double-acting cylinders allow the operator to use the v-plow in straight blade mode by locking the wings together instead of having to toggle each wing independently.

The double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

Previous Next

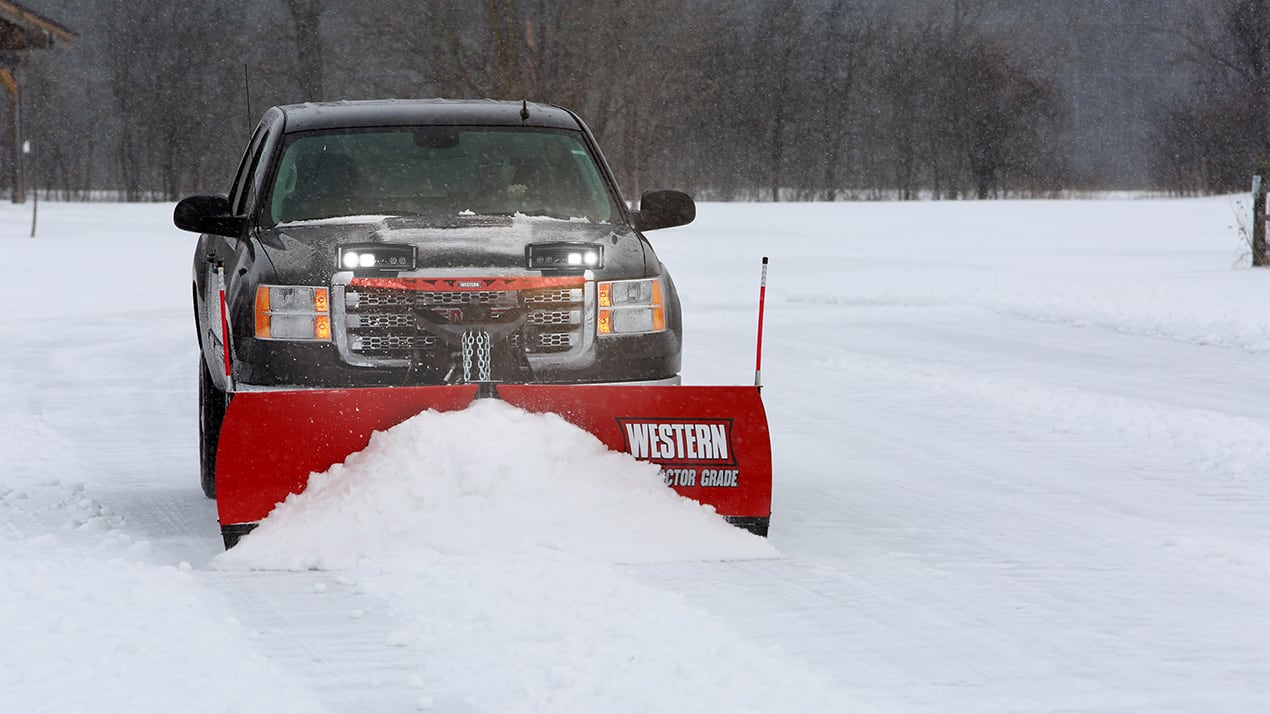

STEEL CENTER GAP COVER

For the cleanest pass in any position, the MVP PLUS v-plow has a snow control deflector over the center hinge to help prevent snow from being lost over the top.

Previous Next

RELIABLE HYDRAULICS

We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.

Fully enclosed components are protected from the elements.

Previous Next

TRIP PROTECTION

Each blade features independent trip edge design with heavy-duty coil springs for protection when encountering bumps and obstacles. Whether in V, scoop, or straight blade configuration, the trip edge helps protect the plow, the truck, and the operator. Since only the edge trips, snow remains in front of the blade, so you can keep going without spilling the entire load of snow.

UNIVERSAL FEATURES

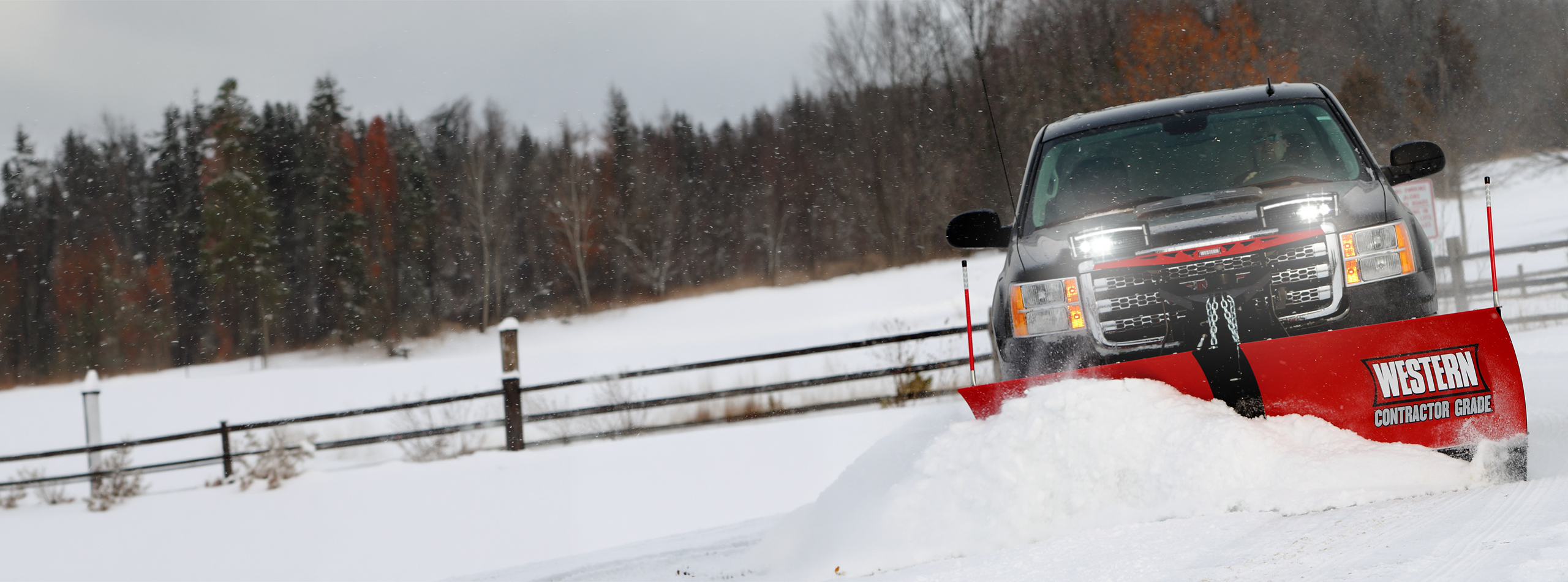

NIGHTHAWK Headlamps

Available in both LED and Dual-Halogen models, NIGHTHAWK headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm.

LED Headlamps - LEARN MORE

Dual-Halogen Headlamps - LEARN MORE

UltraMount® 2 Snowplow Mounting System

The UltraMount® 2 system is designed for fast and easy installation and removal using a simple mechanical system. It features a robust one-piece design and is 100% compatible with UltraMount® system mounts and electrical platforms.

Chain Lift System

The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system.

FLEET FLEX ELECTRICAL SYSTEM

The FLEET FLEX electrical system provides true fleet interchangeability. The same FLEET FLEX CabCommand hand-held or joystick control can operate any UltraMount® and UltraMount® 2 mounted plow on any truck at any time.

SECURITY GUARD Anti-Theft System

The exclusive WESTERN® SECURITY GUARD snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft.

CONTROL OPTIONS

Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.

Isolation Module

This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.

ULTRAFINISH BAKED-ON POWDER COAT

The ULTRAFINISH baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust.

Pre-Punched Blades for Accessories

The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.

FEATURED ACCESSORIES

BACK DRAG EDGE

Ensure a clean scrape, every time, when you back drag. Angled to maximize back dragging, the WESTERN® back drag edge is constructed to be as rugged and durable as every other component of your plow. Easy to install and easy to use, a back drag edge is a key tool in any snowfighter's kit.

CURB GUARDS

Go right up to the edge with bolt-on curb guards. Protect the outer edge of your snow plow from wear when plowing along sidewalks and curbs. Made of cast metal, each curb guard effectively protects the outer edge of the plow.

PLOW WINGS

Get more jobs done faster with wings. These plow wings increase the overall plowing width by one foot, add up to 30% more carrying capacity, and minimize snow spill-off. Made of 12-gauge steel with high strength steel ribs, these durable wings attach quickly and easily with a single pin.

PRODUCT SPECIFICATIONS

Models 7' 6" 8' 6" 9' 6" 7' 6" Poly 8' 6" Poly 9' 6" Poly
Blade Width 7' 6" 2.29 m 8' 6" 2.59 m 9' 6" 2.90 m 7' 6" 2.29 m 8' 6" 2.59 m 9' 6" 2.90 m
Blade Height 29" 73.66 cm 29" 73.66 cm 31" 78.74 cm 29" 73.66 cm 29" 73.66 cm 31" 78.74 cm
Blade Gauge 14 1.98 mm 14 1.98 mm 14 1.98 mm ¼" Poly 6.40 mm ¼" Poly 6.40 mm ¼" Poly 6.40 mm
Trip Springs 4 4 4 4 6 6 4 4 4 4 6 6
Vertical Ribs 6 6 8 8 8 8 6 6 8 8 8 8
Lift Cylinder 1 ½" x 8" 3.81 cm x 20.32 cm 1 ½" x 8" 3.81 cm x 20.32 cm 1 ½" x 8" 3.81 cm x 20.32 cm 1 ½" x 8" 3.81 cm x 20.32 cm 1 ½" x 8" 3.81 cm x 20.32 cm 1 ½" x 8" 3.81 cm x 20.32 cm
Angling Rams 1 ¾" x 11" 4.45 cm x 27.94 cm 1 ¾" x 11" 4.45 cm x 27.94 cm 1 ¾" x 11" 4.45 cm x 27.94 cm 1 ¾" x 11" 4.45 cm x 27.94 cm 1 ¾" x 11" 4.45 cm x 27.94 cm 1 ¾" x 11" 4.45 cm x 27.94 cm
Plowing Width 6' 6" Full Angle
6' 3" Scoop
6' 9" Full V
1.98 m Full Angle
1.91 m Scoop
2.06 m Full V
7' 5" Full Angle
7' 1" Scoop
7' 7" Full V
2.26 m Full Angle
2.16 m Scoop
2.31 m Full V
8' 3" Full Angle
7' 11" Scoop
8' 7" Full V
2.51 m Full Angle
2.41 m Scoop
2.62 m Full V
6' 6" Full Angle
6' 3" Scoop
6' 9" Full V
1.98 m Full Angle
1.91 m Scoop
2.06 m Full V
7' 5" Full Angle
7' 1" Scoop
7' 7" Full V
2.26 m Full Angle
2.16 m Scoop
2.31 m Full V
8' 3" Full Angle
7' 11" Scoop
8' 7" Full V
2.51 m Full Angle
2.41 m Scoop
2.62 m Full V
Approx. Weight* 827 lb 375 kg 880 lb 399 kg 988 lb 448 kg 799 lb 362 kg 847 lb 384 kg 964 lb 437 kg
Cutting Edge ⅜" x 6" 0.95 cm x 15.24 cm ⅜" x 6" 0.95 cm x 15.24 cm ½" x 6" 1.27 cm x 15.24 cm ⅜" x 6" 0.95 cm x 15.24 cm ⅜" x 6" 0.95 cm x 15.24 cm ½" x 6" 1.27 cm x 15.24 cm
Mount Type UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2 UltraMount® 2

*Does not include vehicle mount. Please refer to the Quick Match program for specific vehicle applications.
NOTE: For MVP PLUS availability, check with your local dealer.
