ANY JOB. ANY CONDITION.

Designed to attach to a wide variety of vehicles, the WESTERN^® PRO-FLO^™ 525 and PRO-FLO^™ 900 poly tailgate spreaders feature a two-stage, auger-fed delivery system and dual variable-speed control for consistent and efficient flow of all types of de-icing materials.

Unique Features

Cover
Dual Electric Motors
Controls
Corrosion-Resistant Hopper
Material Delivery
Spinner
Accessory Integration
Inverted V / Vibrator
Top Screen
Mounting Options

Previous Next

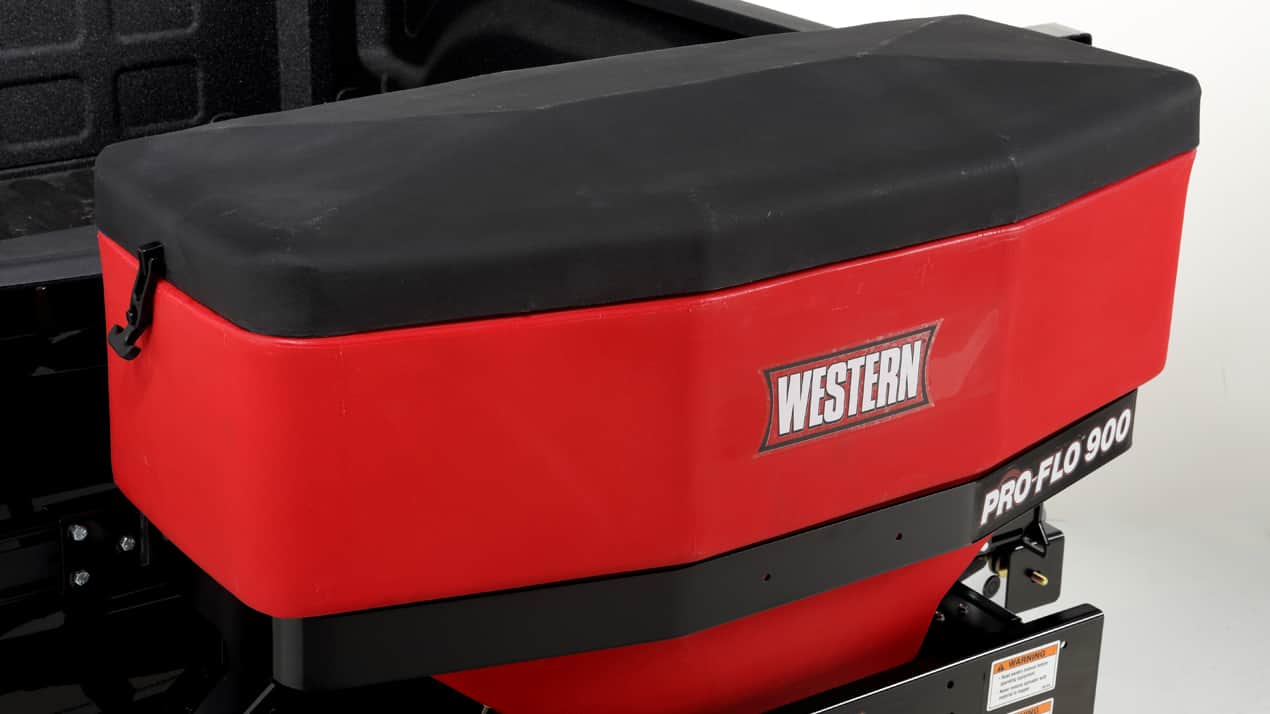

Cover

A latching, molded polyethylene lid protects de-icing material from the elements.

Previous Next

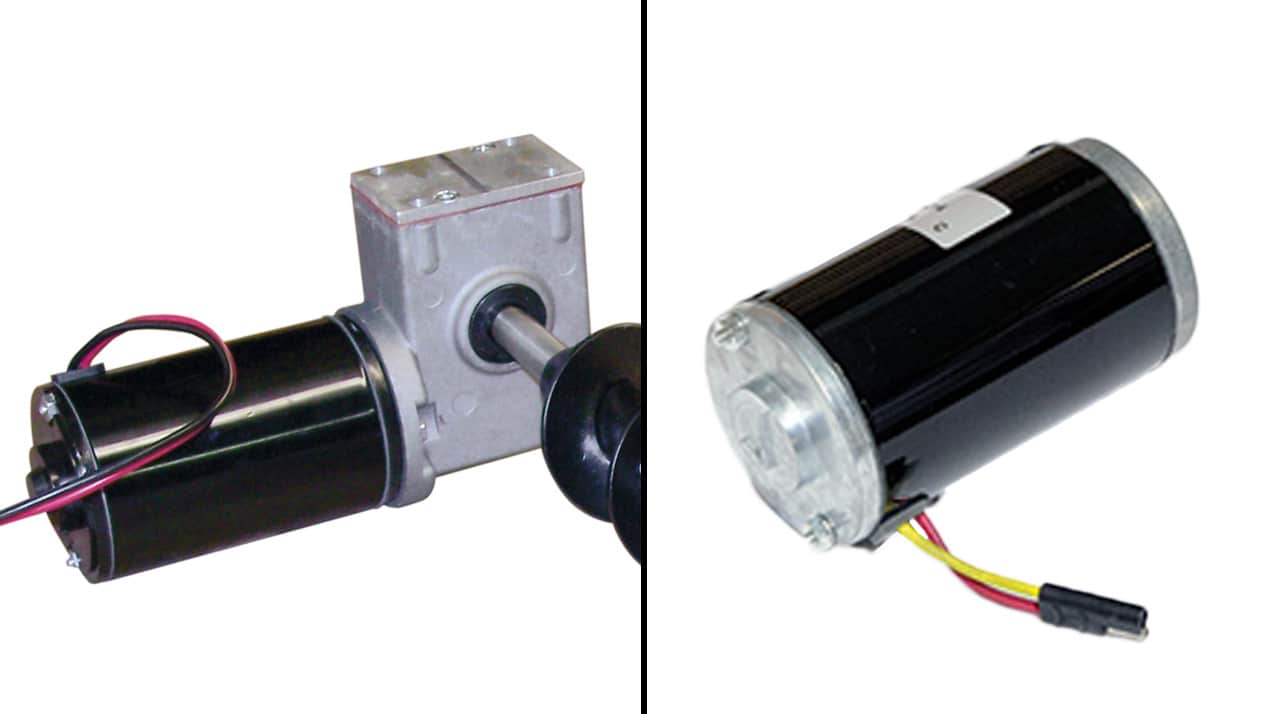

Dual Electric Motors

Two instant-start, 12-volt electric motors provide quiet, reliable, independent control over the auger and spinner mechanisms. The spinner motor is sealed inside a weather-resistant housing, protecting it from corrosion.

Previous Next

Controls

Enhanced, dual variable-speed control allows you to precisely match material delivery and spread patterns to conditions.

Four standard accessory buttons and a dedicated blast button provide optimum in-cab efficiency.

Easy-to-understand, digital self-diagnostics alert the operator when the spreader is empty or when adjustments are needed, and LEDs make the control easy to read.

Its compact size compared to traditional controls fits easily into today's modern truck cab designs.

Previous Next

Corrosion-Resistant Hopper

PRO-FLO^™ 525 and PRO-FLO^™ 900 tailgate spreaders feature corrosion-free polyethylene hoppers for long-lasting durability.

Previous Next

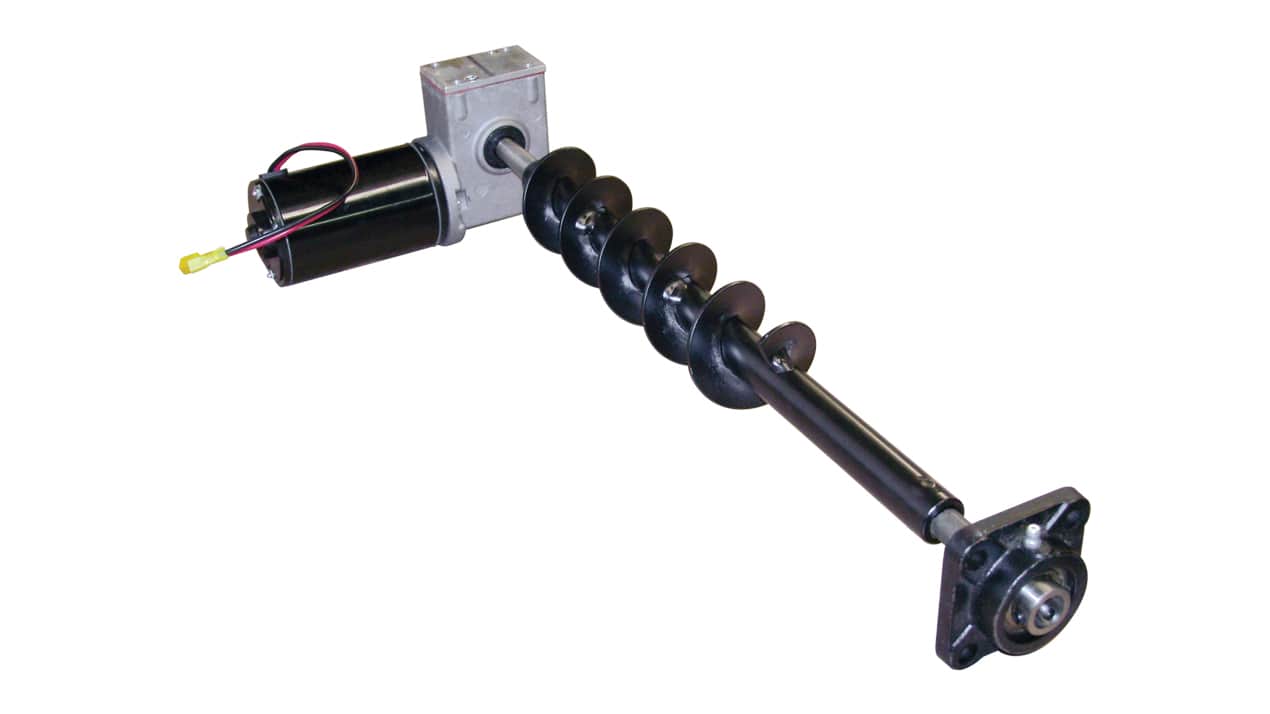

Material Delivery

Material is delivered by a heavy-duty, powder coated, horizontal steel auger to provide long-lasting, reliable performance.

When an obstruction occurs, the transverse auger delivery system can reduce downtime by automatically backing itself in and out until the obstruction is cleared or a required adjustment has been made.

Previous Next

Spinner

The PRO-FLO^™ 525 tailgate spreader features a 10" spinner made of nylon/glass reinforced resin, and delivers a spread pattern of up to 30'.

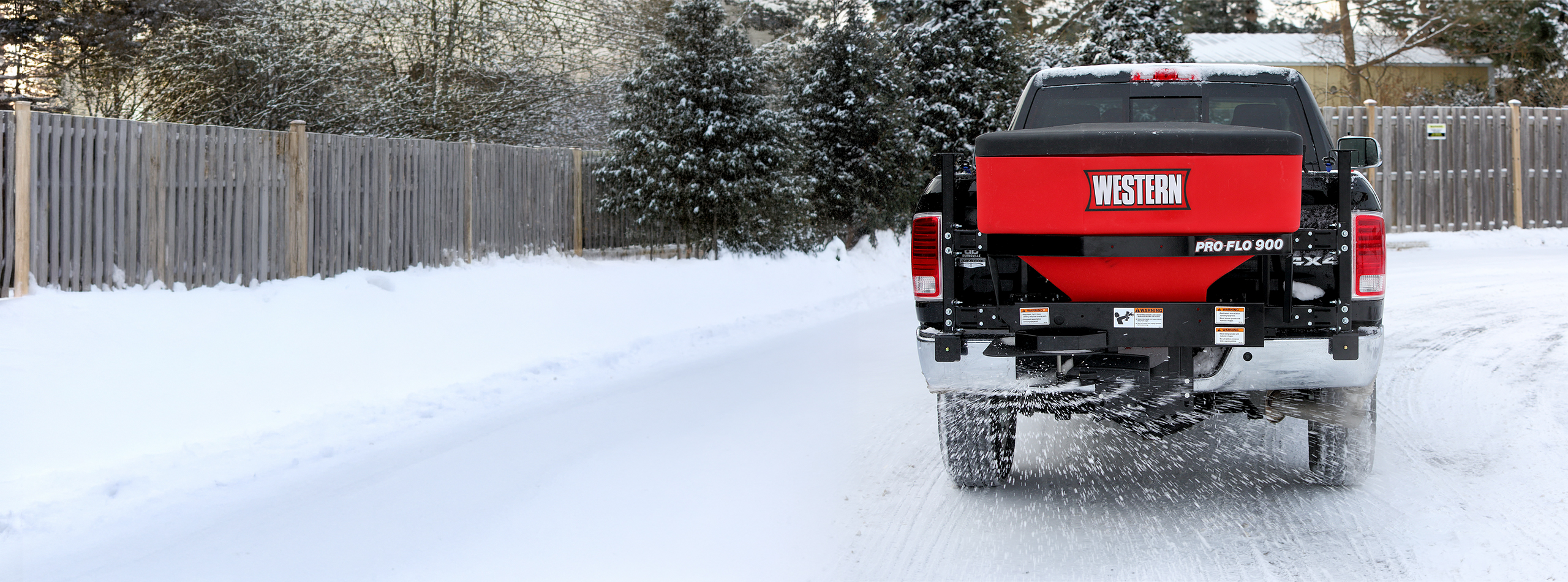

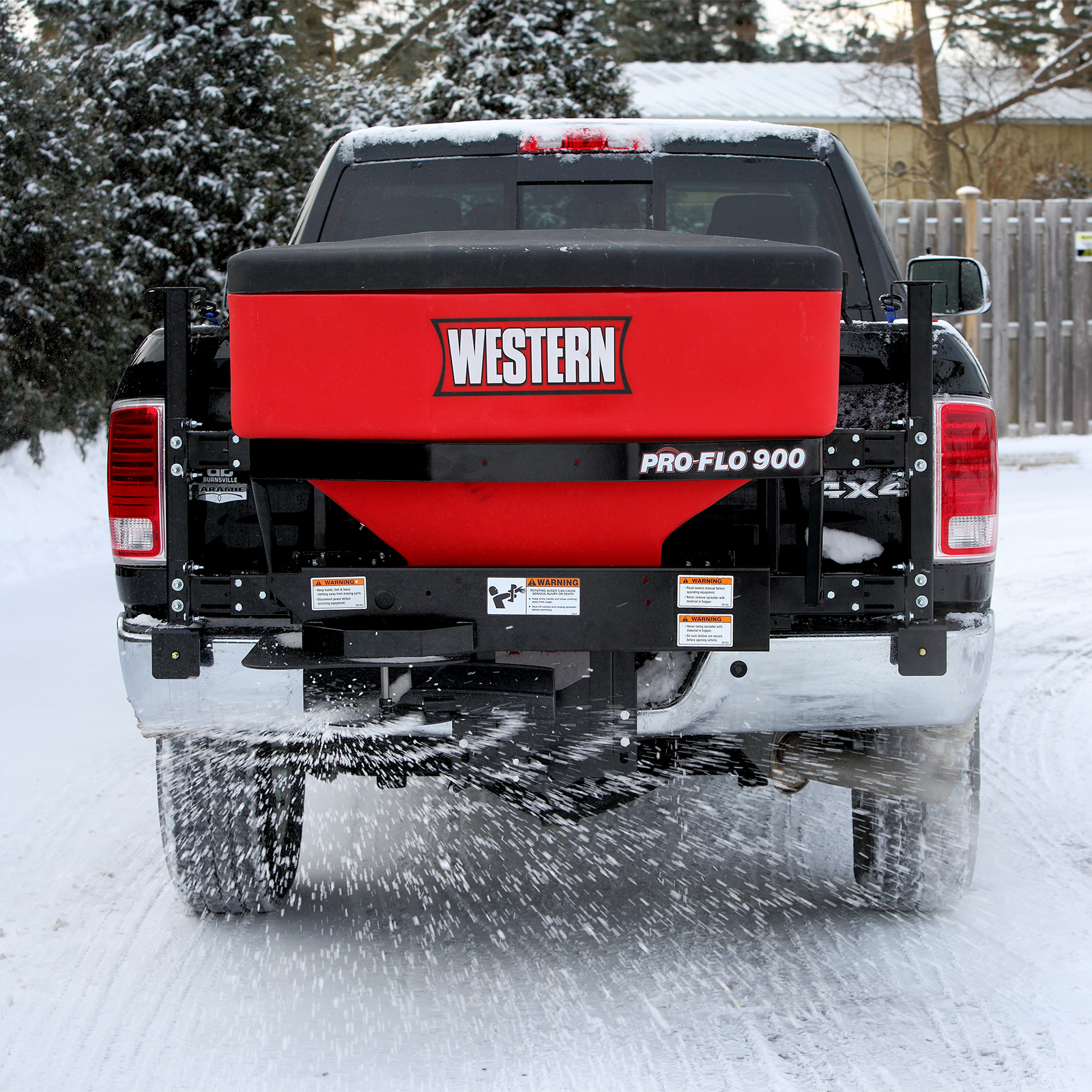

The PRO-FLO^™ 900 tailgate spreader features a 12" steel spinner and delivers a spread pattern of up to 40'.

Previous Next

Accessory Integration

Conveniently connect accessories directly into the spreader module mounted in the spinner motor enclosure. Accessories automatically integrate with the tailgate control without having to run additional wires from the front of the truck.

Previous Next

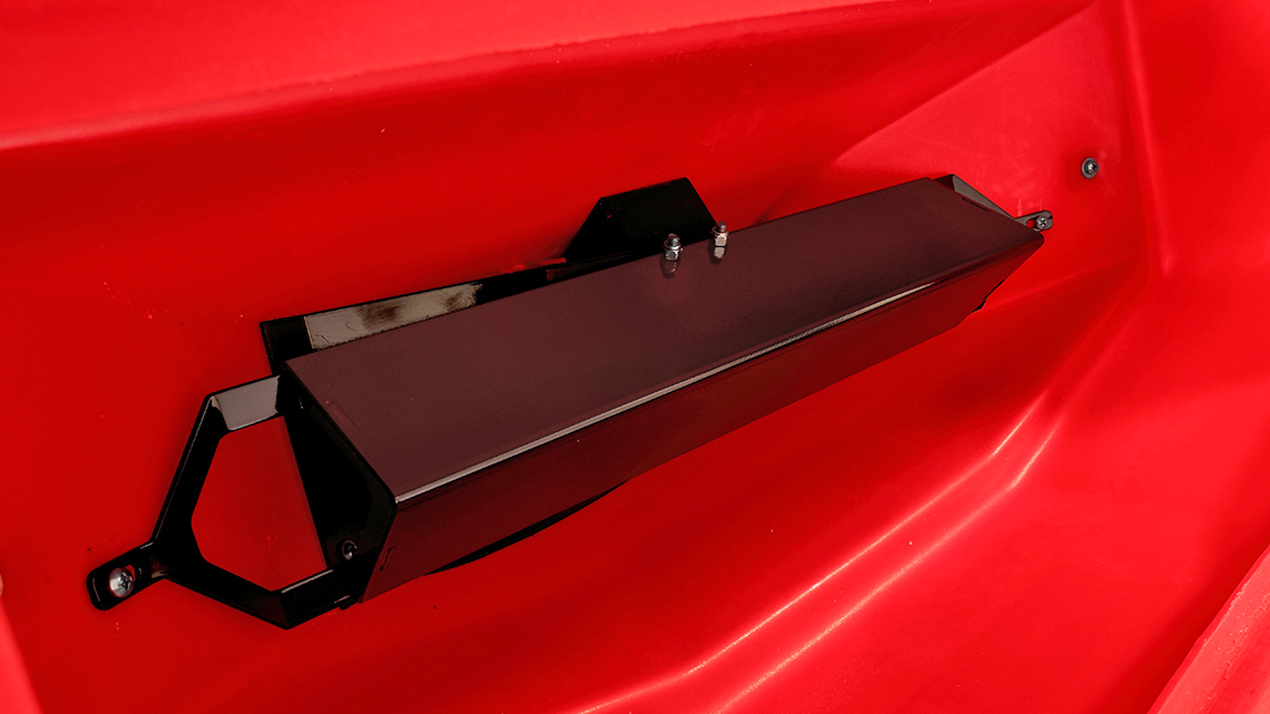

Inverted V / Vibrator

The standard inverted V helps keep sufficient material weight off of the auger, ensuring smooth startup and flow of material.

The inverted V is directly connected to a 12-volt vibrator to help reduce bridging and keep material moving to the auger.

Previous Next

Top Screen

The standard coated steel top screen helps break up large chunks of de-icing material during the loading process to help prevent clogging and bridging during spreader operation.

Previous Next

Mounting Options

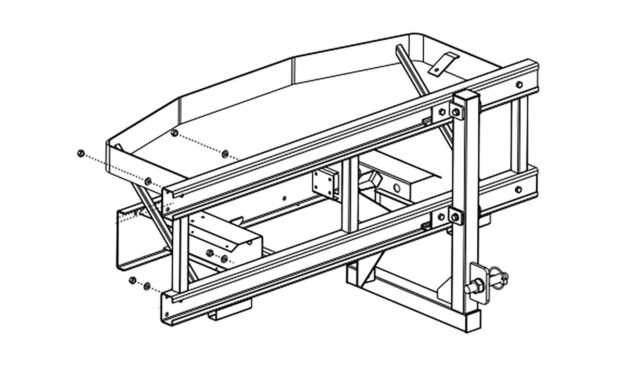

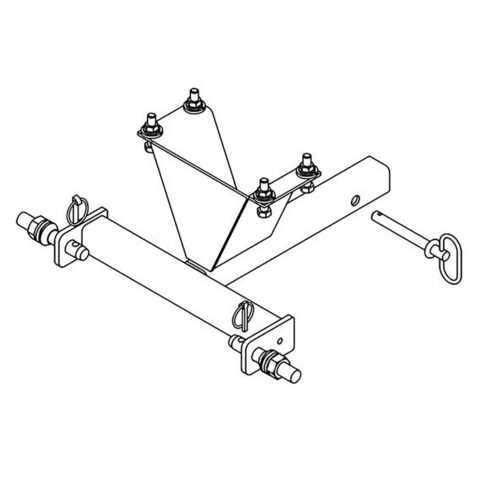

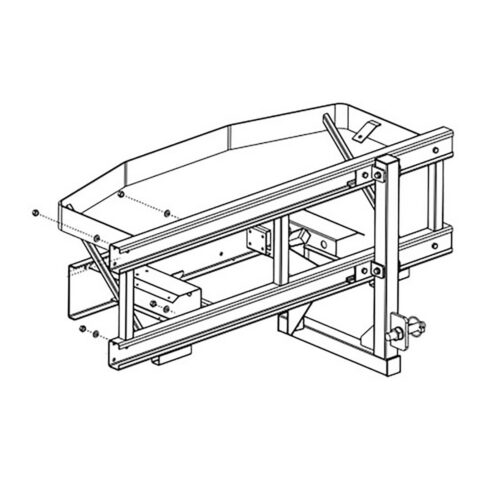

The PRO-FLO^™ 525 tailgate spreader comes standard with a combination 2" receiver hitch and 3-point tractor mount for use on multiple vehicle types.

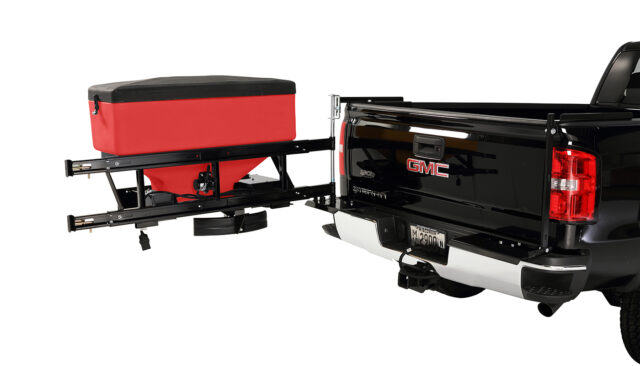

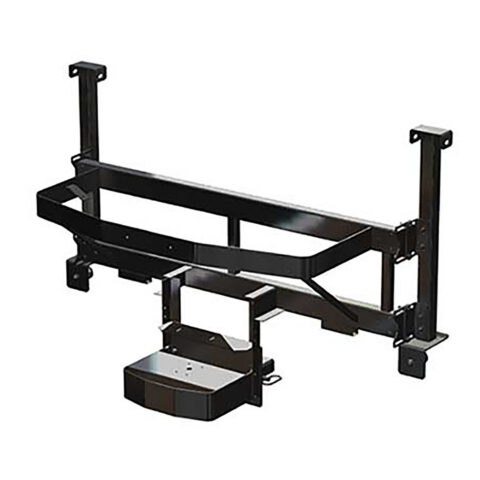

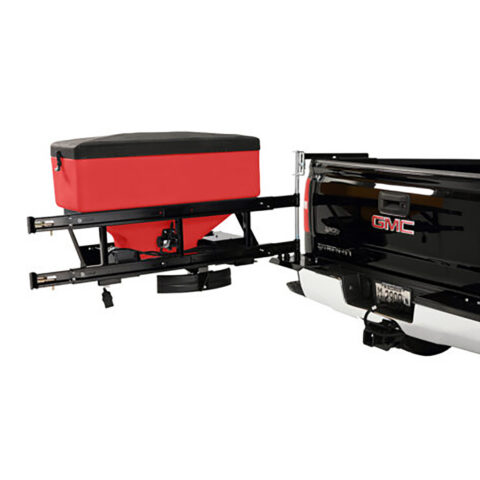

The PRO-FLO^™ 900 tailgate spreader* requires the additional purchase of one of the available mount options: a pivot mount, a 2" receiver hitch mount (requires additional adapter), or a 3-point hitch mount.

*Mounts sold separately.

Featured Accessories

WORK LIGHT KIT

See more to do more with the Work Light Kit for better visibility at the rear of your spreader at night. Encased in anodized aluminum, and good to less than minus 20 degrees, this LED work light will put over 1000 lumens where you need them, when you need them. The LEDs mean low amp draw, so you can easily use more than one (see our Additional Work Light Kit, PN 99732-1).

MATERIAL CONTROL TUBE

Prevent leaking issues when using fine pellet and flake materials, such as many commercially available non-salt ice melt materials. The material control tube is a sleeve that holds the auger and prevents expensive, fine grain ice melt materials from uselessly leaking out as you drive down the road.

SPREADER CONTROL ADAPTER PLATE

Gain the flexibility and easy installation benefits of the cup holder control mount with every spreader installation using the new Spreader Control Adapter Plate Kit. Kit contains a durable metal mounting plate and hardware.

Control Cup Holder Mount not included, order separately (#82007).

Product Specifications

Models	PRO-FLO 525	PRO-FLO 900
Capacity	5.25 cu ft	9.00 cu ft
Capacity	0.15 cu m	0.25 cu m
Hopper Construction	Polyethylene	Polyethylene
Hopper Construction	Polyethylene	Polyethylene
Dimensions Overall (LxWxH)	20 ½" x 38" x 34"	24" x 52" x 36"
Dimensions Overall (LxWxH)	52.10 cm x 96.50 cm x 86.40 cm	60.90 cm x 132.10 cm x 91.40 cm
Approx. Weight (Empty)	160 lb	180 lb
Approx. Weight (Empty)	72.6 kg	81.7 kg
Motor	Dual Electric, 12V 1/3 hp	Dual Electric, 12V 1/3 hp
Motor	Dual Electric, 12V 1/3 hp	Dual Electric, 12V 1/3 hp
Auger (Diam. x Length)	3" x 14" Heavy-Duty Solid Steel	3" x 20" Heavy-Duty Solid Steel
Auger (Diam. x Length)	7.26 cm x 35.56 cm Heavy-Duty Solid Steel	7.26 cm x 50.80 cm Heavy-Duty Solid Steel
Spinner Size	10"	12"
Spinner Size	25.40 cm	30.50 cm
Spreading Width	Up to 30'	Up to 40'
Spreading Width	Up to 9.14 m	Up to 12.19 m
Materials	Bagged Rock Salt	Bagged Rock Salt
Materials	Bagged Rock Salt	Bagged Rock Salt
Vehicle Application	Tractors, UTVs, SUVs, 1-Ton or Smaller Pickups	Tractors, 1-Ton or Smaller Pickups
Vehicle Application	Tractors, UTVs, SUVs, 1-Ton or Smaller Pickups	Tractors, 1-Ton or Smaller Pickups
Available Mounts	Standard 2" Receiver, 3-Point Combo Mount	Pivot Mount, 2" Receiver Hitch (Requires Adapter Mount), 3-Point Hitch Mount*
Available Mounts	Standard 2" Receiver, 3-Point Combo Mount	Pivot Mount, 2" Receiver Hitch (Requires Adapter Mount), 3-Point Hitch Mount*
