THERE’S NO JOB
TOO BIG FOR
A TRUE PRO

PRO PLUS® HD

STRAIGHT BLADE SNOWPLOW

MAKE SHORT WORK
OUT OF ANY JOB

Make the most of the Class 4 to 6 trucks in your fleet with a plow that stands up to the demands of heavy-duty commercial and light municipal snow plowing. The WESTERN® PRO PLUS® HD snow plow lets you make short work of large parking lots and local streets. Forget business cards—distinguish yourself with the clean pavement you leave behind you when using our heaviest-duty plow.

PRO PLUS® HD

Unique features

Previous Next

PLOW BLADE CONSTRUCTION

Built to withstand high demands, the 34" tall, 10' wide, 11-gauge, powder-coated steel moldboard is constructed to take on jobs like large parking lots and local streets. Equipped with a high-carbon steel cutting edge to reduce wear and extend the life of the blade, the PRO PLUS® HD snow plow ensures a clean scrape on every pass.

Previous Next

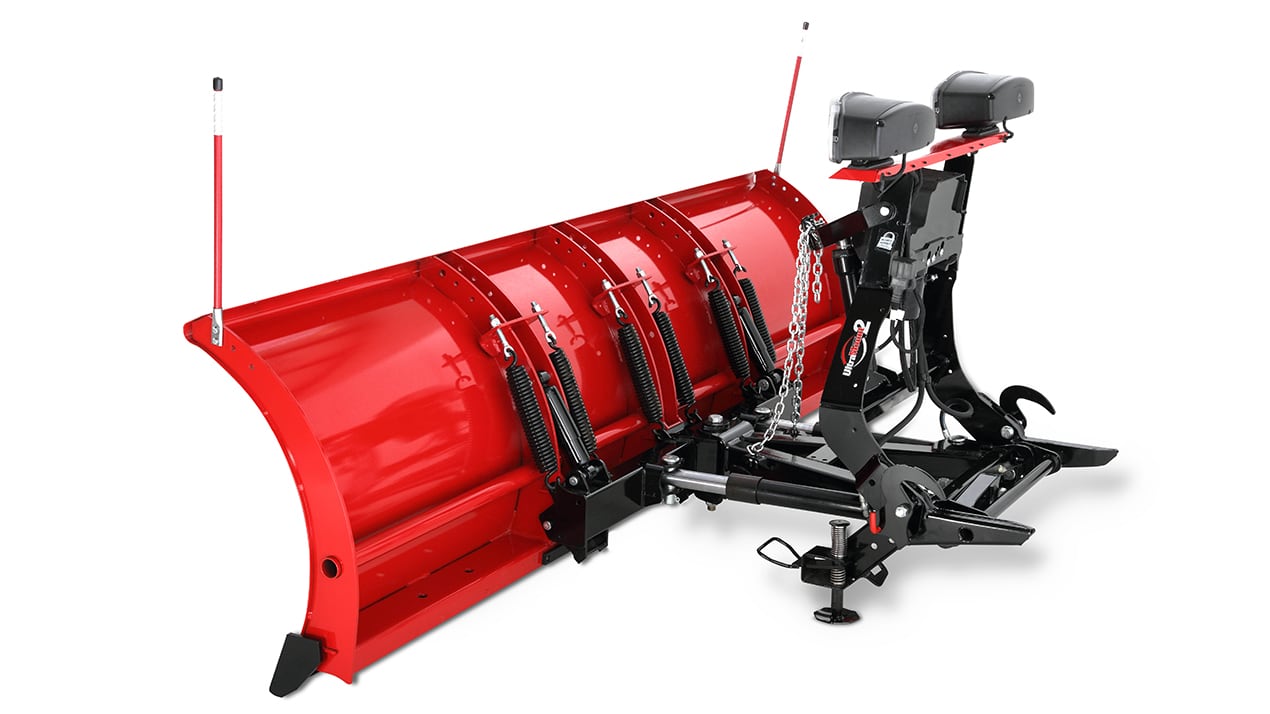

STRUCTURAL REINFORCEMENT

Eight vertical ribs provide structural reinforcement, ensuring proper alignment and reducing stress on the overall plow assembly.

Previous Next

RELIABLE HYDRAULICS

We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.

Fully enclosed components are protected from the elements.

Previous Next

TRIP PROTECTION

Six heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles.

Dual shock absorbers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow.

UNIVERSAL FEATURES

NIGHTHAWK™ Headlamps

Available in both LED and Dual-Halogen models, NIGHTHAWK™ headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm.

LED Headlamps - LEARN MORE

Dual-Halogen Headlamps - LEARN MORE

UltraMount® 2 Snowplow Mounting System

The UltraMount® 2 system is designed for fast and easy installation and removal using a simple mechanical system. It features a robust one-piece design and is 100% compatible with UltraMount® system mounts and electrical platforms.

Chain Lift System

The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system.

FLEET FLEX ELECTRICAL SYSTEM

The FLEET FLEX electrical system provides true fleet interchangeability. The same FLEET FLEX CabCommand hand-held or joystick control can operate any UltraMount® and UltraMount® 2 mounted plow on any truck at any time.

SECURITY GUARD™ Anti-Theft System

The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft.

CONTROL OPTIONS

Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.

Isolation Module

This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.

ULTRAFINISH™ BAKED-ON POWDER COAT

The ULTRAFINISH™ baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust.

Pre-Punched Blades for Accessories

The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.

FEATURED ACCESSORIES

BLADE STOPS

Protect your plow by ensuring heavy loads are distributed evenly. Made of reinforced, 3/16" high-strength steel tube, blade angle stops reduce stress and wear on heavy-duty plow blades.

ADJUSTABLE SHOE KIT

Protect your plow and the road. Ride above the uneven surfaces of gravel and dirt with plow shoes. The cast iron construction and shape ensures that your plow glides over gravel and dirt at the perfect height. Bolt-on shoe kit extends cutting edge and base angle life when plowing rocky or abrasive surfaces.

RUBBER SNOW DEFLECTORS

Control the snow and always see where you're going with optional deflectors. Our 10", 2-ply rubber snow deflectors include bolt-on steel plates to ensure proper positioning of the deflectors to keep your view clear and clean.

PRODUCT SPECIFICATIONS

Print
Models 10'
Blade Width 10' 3.05 m
Blade Height 34" 86.36 cm
Blade Gauge 11 3.05 mm
Trip Springs 6 6
Shock Absorbers 2 2
Vertical Ribs 8 8
Lift Cylinder 1 Âľ" x 8" 4.45 cm x 20.32 cm
Angling Rams 2" x 12 ½" 5.08 cm x 31.75 cm
Plowing Width (Full Angle) 8' 9" 2.67 m
Approx. Weight* 1,075 lb 487.61 kg
Cutting Edge ½" x 6" 1.27 cm x 15.24 cm
Mount Type UltraMount® 2 UltraMount® 2

*Does not include vehicle mount. Please refer to the Quick Match program for specific vehicle applications.
