MAKE YOUR MARK

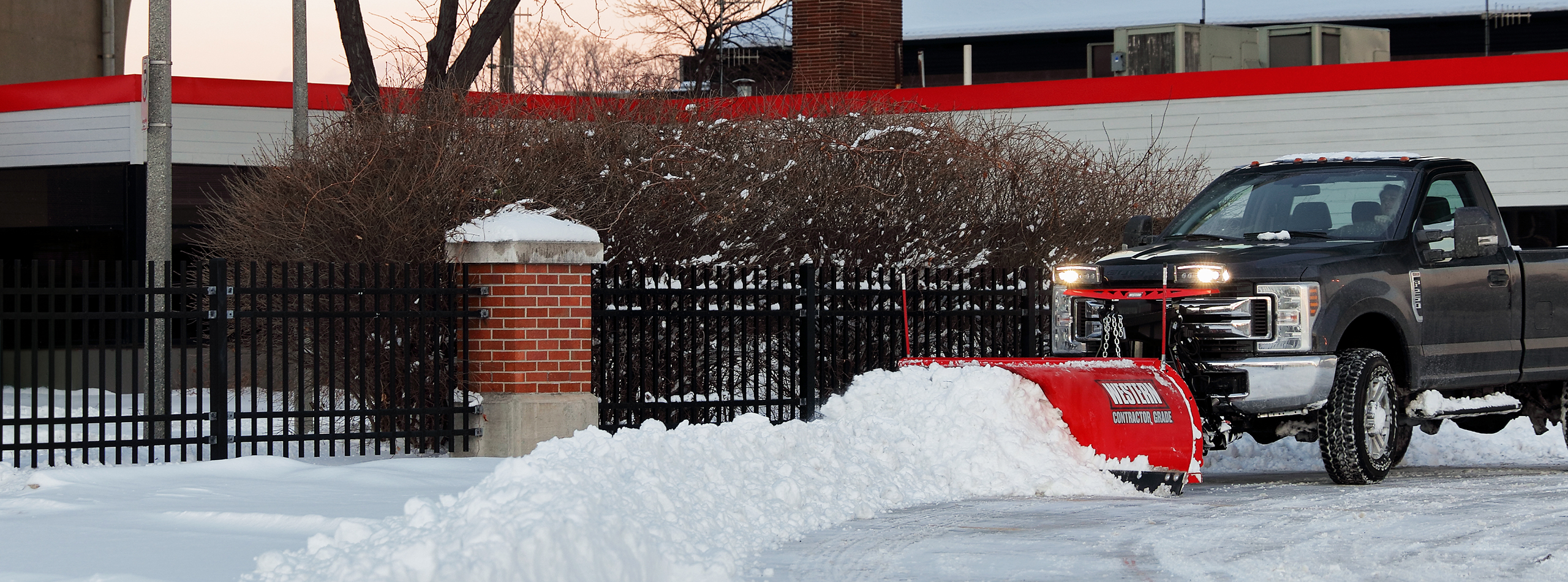

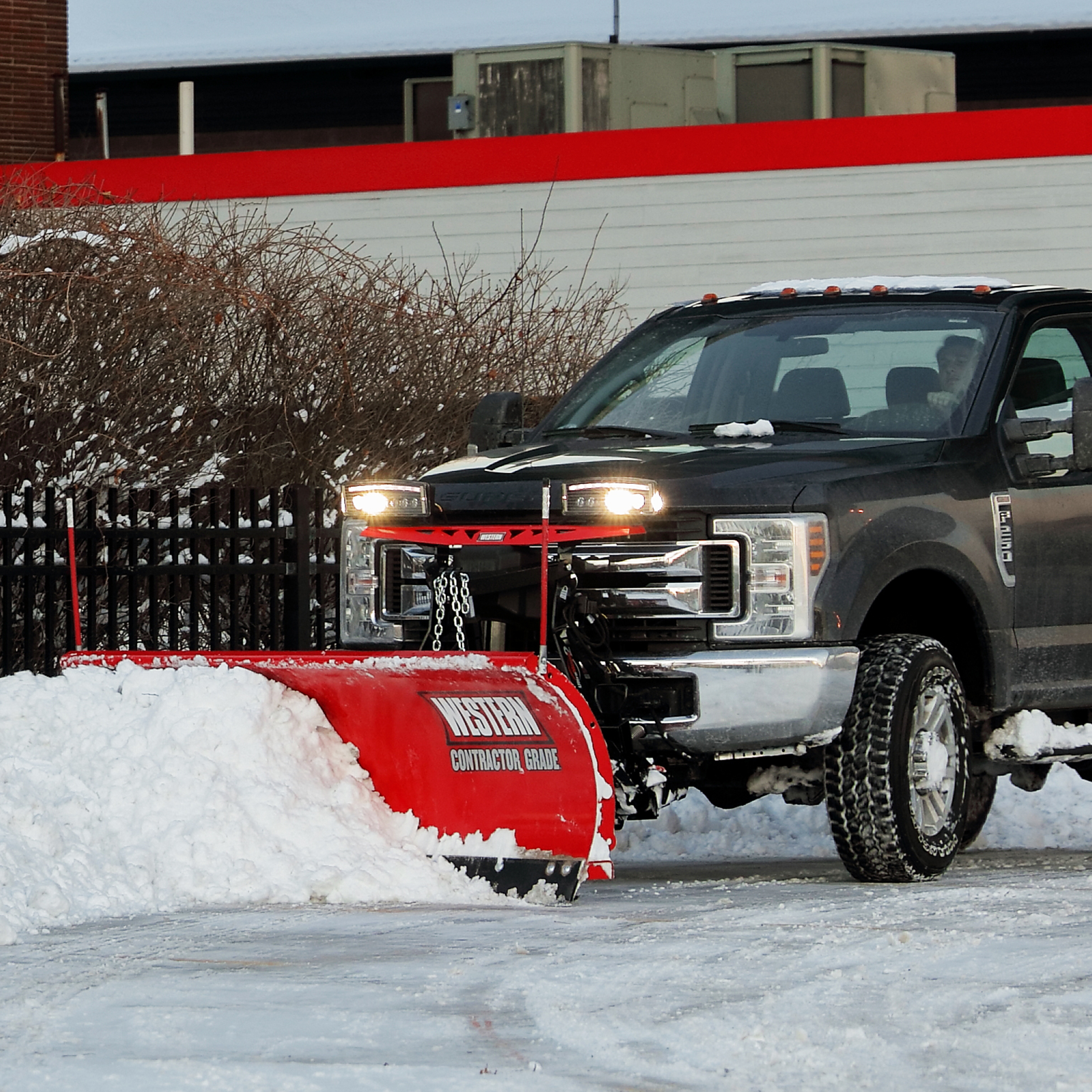

With a winter workhorse like the WESTERN® PRO PLUS® snow plow on your truck, there’s no holding back. Designed to fit a wide range of vehicles, including skid-steers, this plow is built for the toughest commercial operations. Give it all you’ve got, because going halfway has never been your style.
The robust 12-gauge powder coated steel moldboard is a full 31½" tall and comes in 8', 8' 6", and 9' widths.
The PRO PLUS® blade features a 65-degree attack angle, and a high carbon steel cutting edge comes standard, reducing wear and extending the life of the blade.
Eight vertical ribs, a heavy-duty quadrant, and the exclusive WESTERN® POWER BAR provide exceptional torsional strength and rigidity, to eliminate blade twisting even under the most brutal conditions.
The high-strength steel base channel provides extra support along the bottom of the plow blade.
The 1" diameter pivot bolt secures the plow in place, ensuring proper alignment and reducing stress on the overall plow assembly.
We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.
Fully enclosed components are protected from the elements.
Four heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles.
Dual shock absorbers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow.
The PRO PLUS® snow plow is also available with skid-steer mounting options.
This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.
Go right up to the edge with bolt-on curb guards. Protect the outer edge of your snow plow from wear when plowing along sidewalks and curbs. Made of cast metal, each curb guard effectively protects the outer edge of the plow.
Get more jobs done faster with wings. These plow wings increase the overall plowing width by one foot, add up to 30% more carrying capacity, and minimimze snow spill-off. Made of 12-gauge steel with high strength steel ribs, these durable wings attach quickly and easily with a single pin.
Control the snow and always see where you're going with optional deflectors. Our 2-ply rubber snow deflectors include bolt-on steel plates to ensure proper positioning of the deflectors to keep your view clear and clean.
| Models | 8' | 8' 6" | 9' |
|---|---|---|---|
| Blade Width | 8' | 8' 6" | 9' |
| Blade Height | 31½" | 31½" | 31½" |
| Blade Gauge | 12 | 12 | 12 |
| Trip Springs | 4 | 4 | 4 |
| Shock Absorbers | 2 | 2 | 2 |
| Vertical Ribs | 8 | 8 | 8 |
| Lift Cylinder | 1½" x 8" | 1½" x 8" | 1½" x 8" |
| Angling Rams | 1½" x 12" | 1½" x 12" | 1½" x 12" |
| Plowing Width (full angle) | 6' 11" | 7' 4" | 7' 9" |
| Approx. Weight (less mount) | 805 lb** | 821 lb** | 837 lb** |
| Disc Shoes | Cast Iron | Cast Iron | Cast Iron |
| Cutting Edge | 1/2" x 6" | 1/2" x 6" | 1/2" x 6" |
| Mount Type | UltraMount® 2 | UltraMount® 2 | UltraMount® 2 |
| Models | 8' | 8' 6" | 9' |
|---|---|---|---|
| Blade Width | 2.44 m | 2.59 m | 2.74 m |
| Blade Height | 80.01 cm | 80.01 cm | 80.01 cm |
| Blade Gauge | 2.78 mm | 2.78 mm | 2.78 mm |
| Trip Springs | 4 | 4 | 4 |
| Shock Absorbers | 2 | 2 | 2 |
| Vertical Ribs | 8 | 8 | 8 |
| Lift Cylinder | 3.81 cm x 20.32 cm | 3.81 cm x 20.32 cm | 3.81 cm x 20.32 cm |
| Angling Rams | 3.81 cm x 30.48 cm | 3.81 cm x 30.48 cm | 3.81 cm x 30.48 cm |
| Plowing Width (full angle) | 2.11 m | 2.24 m | 2.36 m |
| Approx. Weight (less mount) | 365 kg | 372 kg | 379 kg |
| Disc Shoes | Cast Iron | Cast Iron | Cast Iron |
| Cutting Edge | 1.27 cm x 15.24 cm | 1.27 cm x 15.24 cm | 1.27 cm x 15.24 cm |
| Mount Type | UltraMount® 2 | UltraMount® 2 | UltraMount® 2 |
**Deduct approximately 40 lb for skid-steer model. PRODIGY and PRO PLUS are available with a universal skid-steer loader mounting plate. UltraMount 2 mount weight range: 28 to 145 lb. HEAVYWEIGHT plows are available with the UniMount system. HTS is available with simplified UltraMount System.
